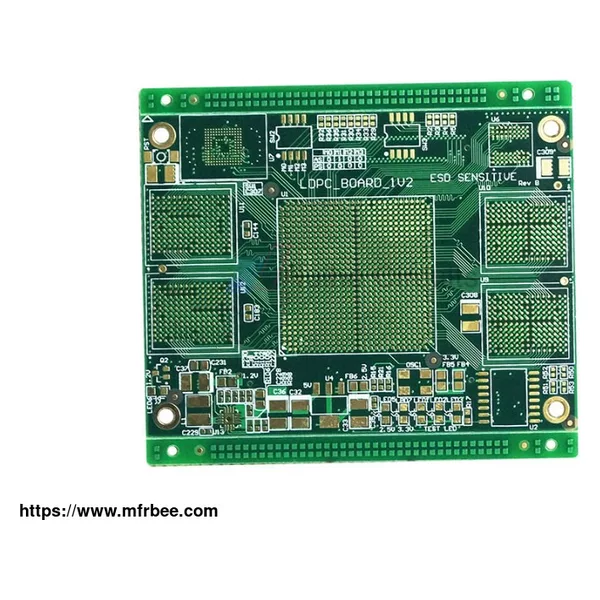

10 Layer Impedance Control Resin Plugging PCB

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

Number of layers: 10

Surface finish: ENIG

Aspect Ratio: 8:1

Base material: FR4

Outer Layer W/S: 4/4mil

Inner layer W/S: 5/3.5mil

Thickness: 2.0mm

Min. hole diameter:0.25mm

Special process: Impedance Control, Resin Plugging, Different Copper Thickness

Advantages Of 10 Layer Impedance Control Resin Plugged Vias CB

Own lamination process to convenient production for Multilayer PCB and shorten the lead time.

Jiangxi facility is environmental-friendly approved by the government .

Famous raw materials brand, Kingboard, Shengyi, ITEQ, Taiyo, Guangxin.

Highly automated production line with AIO Optical Scanning, Electroplating Automatic Line, High-speed flying probe test machines and inkjet printer.

Engineers with more than 15 years of experience

Quick turn, prototype, medium or large batches can be produced to meet the needs of different customers.

Quick response to quotes.

High staff stability, low mobility.

UL/ISO9001/SGS/IATF16949/ROHS/ISO1400 certificated.

Sales office in Shenzhen and own 12,000sqm factory in Jiangxi.

Packing And Delivery Of 10 Layer Impedance Control Resin PCB

As a pcb factory, we can offer different kinds of pcb product for sale, if you have needs, please contact us.

Country: China (Mainland)
Business Type: Manufacturer
Market:
Founded Year:2017
Address:Building 2, Xinda Park, Lvyuan Road, Xinfeng County, Ganzhou 341600, Jiangxi
