PM Integrated VFD Motor
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 60 Days
Specifications
Intelligent permanent magnet direct drive system is a comprehensive solution for equipment drive and control technology. VFD synchronous motor takes permanent magnet direct drive technology as the
core and adopts special frequency converter, permanent magnet synchronous frequency conversion motor, and water cooler to replace traditional mechanical drive devices such as asynchronous motor,
reducer and hydraulic coupler. At present, VFD synchronous motor is widely used in mines, coal, ports, electric power, building materials, chemical industry, and other fields.
Specifications of the PM Integrated VFD for Synchronous Motor
Voltage range 380V/400V/600V/660V/3300V/4160V/6000V/6600V/10000V
Frequency 50Hz/60HZ
Voltage fluctuation range at grid -15%-10%
Frequency fluctuation at grid ±0.2Hz
Speed range 60rpm,75rpm,90rmp and so on
Output frequency 0-50Hz/60Hz
Power rating 45kW-2000kW
VFD principle Voltage source inverter
Motor type Synchronous motor
Control method V/F or DTC without sensor
Starting torque 2 times
Frequency resolution 0.01Hz
Ingress protection IP54 pr IP55
Installation IMB3 or IMB5
Communication CAN、RS485、Profinet、Ethernet IP etc

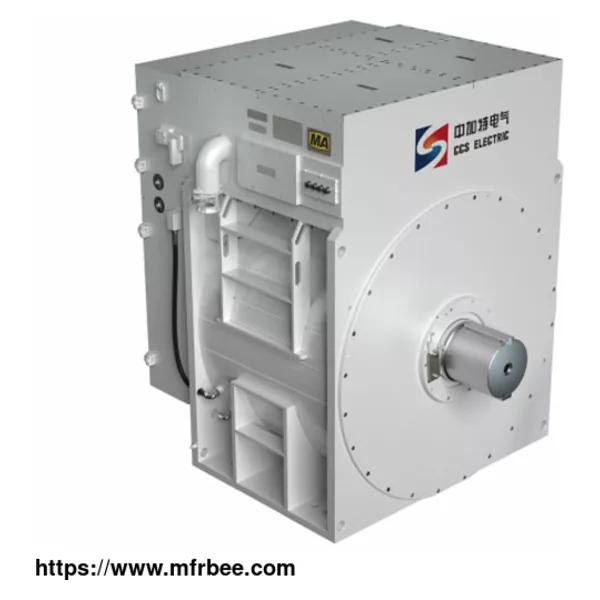

PM Motor with Integrated VFD Schematic
Model Power（kW） Speed（rpm） Torque（Nm） weight（kg）
STJVFT55-2-**x**（1140） 55 75 7003 2100
TJVFT-250/40YC(1140) 250 90 26530 8000
TJVFT-315/60YC(1140) 315 60/75 50137/40110 10900
TJVFT-400/60YC(1140) 400 60/75 63666/50933 13500
TJVFT-450/60YC(1140) 450 60/75 71625/57300 13500
TJVFT-500/60YC(1140) 500 60/75 79583/63666 14000
TJVFT-560/60YC(1140) 560 60/75 89133/71306 14000
TJVFT-800/60YC(1140) 800 60/75 127333/101866 16000
TYJVFT-900L/80YC(10) 1000 60 159167 21000
Features of the PM Motor with Integrated VFD
The VFD synchronous motor has the characteristics of high VFD motor efficiency, energy-saving, large starting torque, excellent performance, small maintenance, and intelligent drive.
High efficiency and energy saving
The intermediate transmission link of the vfd synchronous motor is omitted, and the load is directly driven.
No rotor excitation, no rotor copper loss, high rated efficiency.
The light load area has excellent efficiency and high operation efficiency of the motor with integrated VFD.
Even VFD synchronous motor is at 0 speed, there is a relatively large torque
Heavy-duty starting: starting torque up to 2 times rated torque.
Smooth start to reduce the mechanical impact on load equipment.
Automatic step-less speed regulation according to load, reducing power consumption and prolonging the service life of load equipment.
Motor with integrated VFD has a Small starting current, reducing the impact on the power grid and reducing power grid failures.
VFD for synchronous motor has less footprint.
With integrated VFD motor technology, you can install the equipment in the narrow space as shown in our drawing.
