Regenerative Thermal Oxidizer (RTO)

Minimum Order: 1

Place Of Origin: Jiangsu Province, China

Packaging: wooden box

Delivery: 5-6 months

Regenerative Thermal Oxidizer (RTO) produced by RUIYUAN uses ceramic media to recover upwards of 97% of the available energy and is widely considered to be the most energy-efficient oxidizer. Its ability to repurpose the thermal energy generated during operation to reduce operating costs and energy consumption of the system itself make the RTO (regenerative thermal oxidizer) so popular widely. The regenerative component makes regenerative thermal oxidiser capable of fuel-free operation at very low VOC concentrations.

Benefits of Regenerative Thermal Oxidizer for Sale

System pressure drop resulting in reduced electrical consumption

Multiple designs for easier and faster installation

Regenerative thermal oxidizer (RTO) has greater system flexibility and versatility

High reliability and long-life expectancy (15-20 years+)

Regenerative Thermal Oxidizer Design Features

Pre-assembly, wiring, and testing as much as possible prior to shipment

Regenerative thermal oxidation can apply in the process of flowing up to 25% Lower Explosive Limits (LEL) with self-sustaining LELs as low as 3%

The burner is sized for full flow, zero process VOC emissions so that the RTO (regenerative thermal oxidizer) can maintain temperature and VOC destruction efficiency over the entire range of process operation

Bake-out capabilities designed to remove organic particulate buildup

Hinged access doors for ease of maintenance

Variable Frequency Drives (VFDs) to support high volumetric turn-down during low-process and idle conditions

Regenerative thermal oxidizer (RTO) compliances with FM Global and other international certifications

RTO Oxidizer Air Flow Range & Efficiency

Air Flow Range：3,000-70,000 SCFM (4,815-112,350 Nm3/hr) / Single Unit，70,000-500,000 SCFM (112,350-802,500 Nm3/hr) / Multiple Units

Concentration Range：0 – 25% LEL

Destruction & Removal Efficiency：99%+

There are many , but we are one of the best choices for you.

As one of the most professional regenerative thermal oxidizer manufacturers, we provide metal decorating printing, turnover machine, automatic turnover machine, offset printing machine, etc. Want to know more? Contact us.

Country: China (Mainland)
Business Type:
Market:
Founded Year:
Address:No.99 HengChangJing Road, Zhoushi Town, Kunshan City, Jiangsu Province, China
Contact:ruiyuan .com

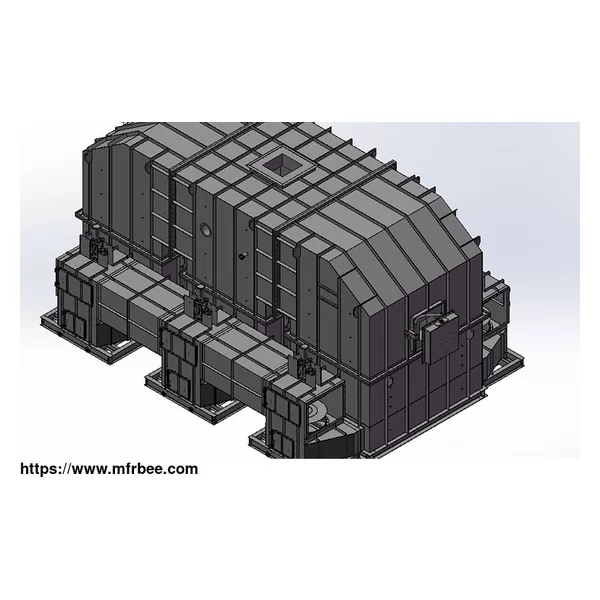

more images of Regenerative Thermal Oxidizer (RTO)
