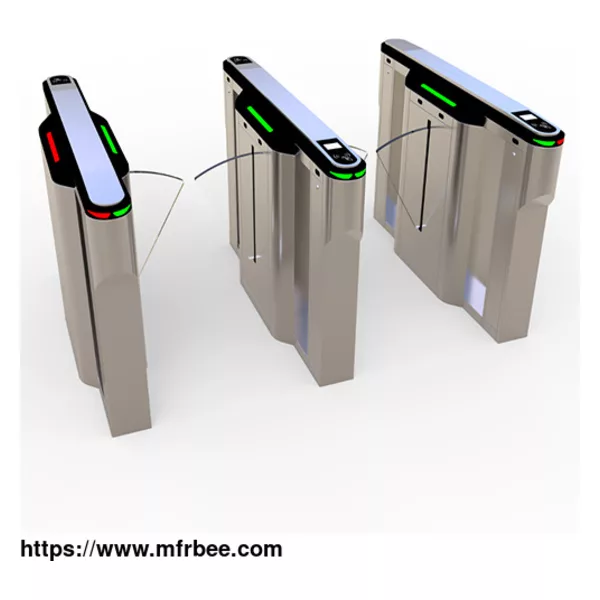

Flap Barrier Optical Turnstile JDYZ-27

1. Single directional or bi-directional access available
2. Ensure only one person enters for each authorized credential by tailgate detection
3. Wide integration of all types of identification systems.
4. High detection accuracy effectively prevents clipping and collision
5. Stable and efficient operation with lower noise
6. Create a seamless and nice entrance system to blend into most indoor environments
7. Provides flexibility and allows lanes to be handicap accessible.
8. Any illegal intrusion and reverse intrusion will trigger a sound alarm
9. Forcibly enter or tailgating attempts will be prompted by audible & visible alerts
10. High performance and robustness

Applications
Corporate lobbies
Office buildings
Data centers
Government facilities
Stadiums
Subways

Parameters

Housing Material	1.5mm~2.0mm #304 stainless sheet
Dimension	1400 x 300 x 980mm
Power Supply	AC220V / AC110V, 50/ 60 Hz
Channel Width	550mm
Drive Motor	DC 24V brush motor
Pass Speed	35~40 persons per minute
Input signal optional	Dry contact signal or +12V level signal or DC12V pulse signal
Rotating Direction	Bi-directional
Communication interface	RS485
Arm drop when power failure	Yes
Open Time	0.2 second
Life Cycle	3 million times
Working Temperature	-30°C~+70°C
Working Environments	Indoor, outdoor (with shelter)

Flap Barrier Optical Turnstile Design

Flap Barrier Optical Turnstile System Diagram

Project Cases for Flap Barrier Optical Turnstile

What is flap barrier optical turnstile used for?
Flap barrier optical turnstile is perfect crowd control management for controlling access to secured areas, enhancing perimeter security. We offer high quality turnstile gates with multiple designs, which are used to control the flow of pedestrian enter into and out of secured areas. They are implemented to make entry control management easier for security personnel, also more comfortable for users . The security turnstiles are applicable to outdoor and indoor.

Benefits of flap barrier optical turnstile and contactless entrances
1.Reduce virus spread: flap barrier optical turnstile is touchless type turnstile, it is very helpful to eliminate the need to touch the turnstiles by using it, which effectively prevent cross-contamination at high trafficked areas
2.Improves entrance security: flap barrier optical turnstile provides the hands-free operation which is helpful to reduce cross-contamination meanwhile ensure entrance security. They are supplied with optical beams to detect passage and prevent passage with physical barriers made of glass, metal, and other comparable materials.
3.Increase throughput efficiency: flap barrier optical turnstile is very efficient as they provide the transit speed rate, preventing traffic buildups, confusion, and ultimately an inefficient entryway.

Can flap barrier optical turnstile be integrated with 3rd party access control systems ?
Off course, flap barrier optical turnstile is comptiable with a wide variety of access control systems by dry contact. Card pass, fingerprint / handprint reader, face recognition, barcode reader, thermal camera and token applications can integrate with such access control turnstiles.

What will happen when power off and in emergency situation?
Flap barrier optical turnstile instantly automatically unlocks for free passage under emergency situations (power outages, fire, etc)

Can flap barrier optical turnstile be used indoor and outdoor?
Off course, flap barrier optical turnstile is made for indoor or outdoor situations. For outdoor applications, there is should be shelter above.

Can flap barrier optical turnstile be operated manually or remotely?
Flap barrier optical turnstile is to be operated by the user at the turnstile. You can have a person who monitors the security turnstile from the surveillance terminal.
