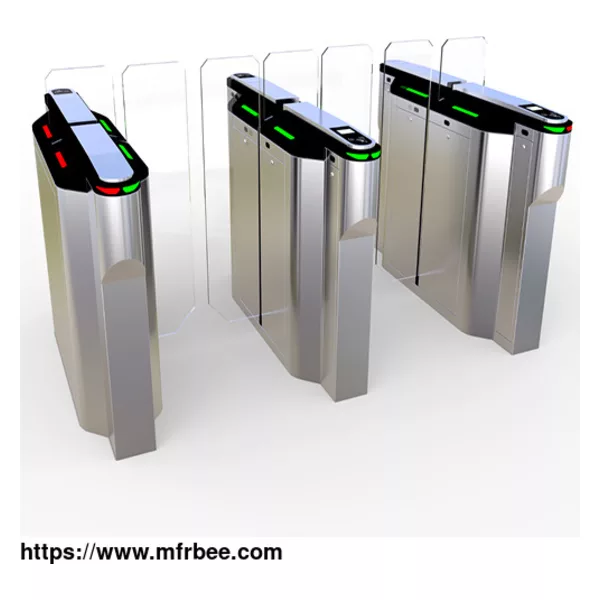

Sliding Gate Optical Turnstile JDPYZ-10

Sliding gate optical turnstile JDPYZ-10 is an effecient contactless crowd control solution for upscale corporate lobbies, high rise building entrances, luxury apartment complexes, universities, and anywhere autonomous entry and aesthetics are important. It adopts high-quality DC brushless motor and advanced positioning technology, ensuring the movement of automatic turnstile In a fast, accurate, stable and quiete way with low-noise, low-power consumption, and a longer service life.

Features
1. Intelligent user guidance
2. Accurate tailgating detection
3. Precision controlled movement of obstacles and detection of all obstructions
4. In case of power failure, doors will automatically retract for a clear passage, making fast evacuation
5. Dynamic and predictive algorithms ensuring top of the class performance for fraud detection
6. Precise, well-lit pictograms for intuitive user experience and ergonomic
8. Smooth integration of proximity, magnetic card readers, biometric scanners and other user authentication systems
9. Run at rather fast speed
10. Transparent and elegant design

Applications
Upscale corporate lobbies,
High rise building entrances
Luxury apartment complexes
Commercial office buildings
Government agencies
Educational institute

Parameters

Housing Material	1.2mm~2.0mm #304 stainless sheet
Dimension	1400 x 350 x 980mm
Power Supply	AC220V / AC110V, 50/ 60 Hz
Lane Width	500mm~550mm
Drive Motor	DC 24V brushless motor
Pass Speed	35 persons per minute
Input Interface	Dry contact signal or +12V level signal or DC12V pulse signal
Rotating Direction	Bi-directional
Communication Interface	RS485
Rest Time after Power On	3 seconds
Open Time	1 second
Life Cycle	3 million times
Working Temperature	-30°C~+70°C
Working Environments	Indoor, outdoor (with shelter)

Sliding Gate Optical Turnstile Design

Sliding Gate Optical Turnstile System Diagram

Project Cases for Sliding Gate Optical Turnstile

How does a sliding gate optical turnstile works?
Sliding gate optical turnstile is equipped with sliding flaps closed strait horizontally which operate in two-directional movements. When closed, the sliding flaps meet each other to form a barrier between restricted area and public area. When opened, the wings fully retract into the cabinet, creating free passage. It is supplied with infrared sensor to ensure that only one person enters for each authorized credential at one time. The pedestrians shows their valid credential before entry, the optical sliding turnstile will open for free access. Closure takes place immediately after passage or after and adjustable holding-open time, preventing unauthorized passage or tailgating. The opening time and closing time can be progranned depened on the height of the sliding faps. In case of power failure of in emergency, the obstacles can be unlocked with a simple push to automatically open.

Characteristics of a sliding gate optical turnstile entrance system
1. Automatic Barrier Operation: sliding gate optical turnstile is touchless turnstile equipped with DC motors which automatically drive barriers out of the way at requested direction to grant hand-free access, As hand-free turnstile, it must be able to function without any physical user input, and automatically open and close without any manual operation by the pedestrians
2. Proper Social Distancing: Though sliding gate optical turnstile operates completely autonomously, it is usually for the organizations with turnstile access control systems at their entryways to have a security guard for providing assistance when necessary, it is crucial to ensure the employs are stationed a certain distance away from the touchless turnstile lane to maintain proper social distance.
3. Contactless Credential Checking: Although sliding gate optical turnstile is completely contactless device, it is stile required to be integrated with a touch-free credential checking system to truly provide a hands-free entry experience. Some of these systems include iris scanners, facial recognition software, temperature sensors, and proximity scanners.

Can sliding gate optical turnstile be integrated with 3rd party access control systems ?
Off course, sliding gate optical turnstile is comptiable with a wide variety of access control systems by dry contact. Card pass, fingerprint / handprint reader, face recognition, barcode reader, thermal camera and token applications can integrate with such access control turnstiles.

What will happen when power off and in emergency situation?
Sliding gate optical turnstile instantly automatically unlocks for free passage under emergency situations (power outages, fire, etc)

Can sliding gate optical turnstile be used indoor and outdoor?
Off course, sliding gate optical turnstile is made for indoor or outdoor situations. For outdoor applications, there is should be shelter above.

Can sliding gate optical turnstile be operated manually or remotely?
Sliding gate optical turnstile is to be operated by the user at the turnstile. You can have a person who monitors the security turnstile from the surveillance terminal.
