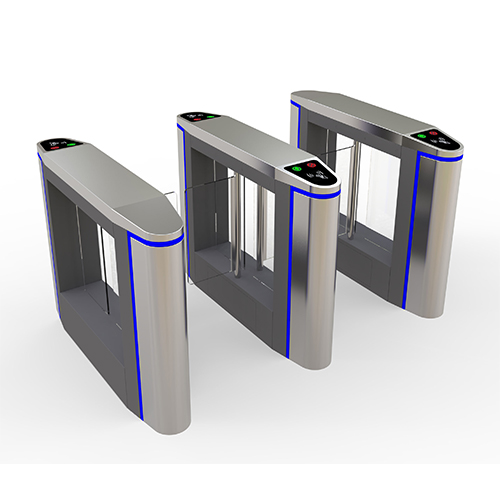

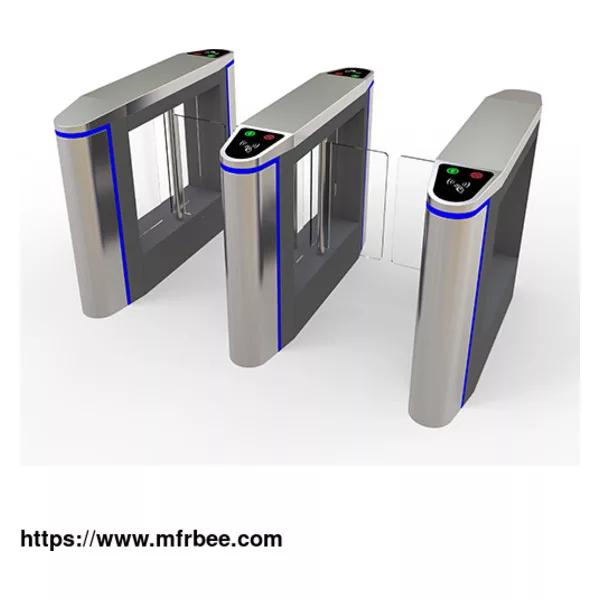

Automatic Swing Turnstile Gate JDBZ-27

1. Slim cabinet design for a smaller footprint
2. Detects tailgating and exact position of users
3. Intelligent drive system and pinpoint control of moving panels
4. Multiple operational modes including controlled passage, free passage and visitor
5. Supports very rapid throughput
6. Superior unauthorized passage and unauthorized presence detection
7. Standard and handicapped width lanes have same cabinet dimensions
8. Perfectly suited to any type of architecture
9. Fault visualization for easy to check on site
10. Widely used in various indoor and outdoor environments

Applications
Industrial parks
Commercial buildings
Fitness center
Universities
Public transportation systems
Government facilities

Parameters

Automatic Swing Turnstile Gate Design

AutomaticSwing Turnstile Gate

Automatic Swing Turnstile Gate Project Cases

What is automatic swing turnstile gate?
Swing barrier optical turnstile, a typical optical turnstile, utilizes the internal infrared technology coupled with a physical barrier to provide added security against unwanted entry. Swing barrier optical turnstile cabinets can be installed as close to or as far apart from each other as needed. This provides flexibility and allows lanes to be handicap accessible.

How does automatic swing turnstile gate work?
Automatic swing turnstile gate, functions by fixing in pairs, by which it is important to choose the right number of these turnstiles for specific projects. Meanwhile, considering the quantity for pedestrian traffic and for access for the disabled is also very important. Take swing gate turnstile JDBZ-25 as example, which include single-wing type and dual-wing type. 2 single-wing type are required for a single-lane pass, and a 2-lane passage includes 2 singe-wing type JDBZ-25 fixed on each side of a dual-wing type JDBZ-25. In addition, most of our touchless turnstiles provide wide lane up to 900mm width for disabled access.

Can automatic swing turnstile gate be integrated with 3rd party access control systems ?
Off course, automatic swing turnstile gate is comptiable with a wide variety of access control systems by dry contact. Card pass, fingerprint / handprint reader, face recognition, barcode reader, thermal camera and token applications can integrate with such access control turnstiles.

What will happen when power off and in emergency situation?
Automatic swing turnstile gate instantly automatically unlocks for free passage under emergency situations (power outages, fire, etc)

Can automatic swing turnstile gate be used indoor and outdoor?
Off course, automatic swing turnstile gate is made for indoor or outdoor situations. For all outdoor applications, we use 304 stainless steel to prevent corrosion.

Does automatic swing turnstile gate give access to ADA pedestrians?
Yes, automatic swing turnstile gate provides wide lane up to 900mm for the disabilities to allow for wheelchairs.
