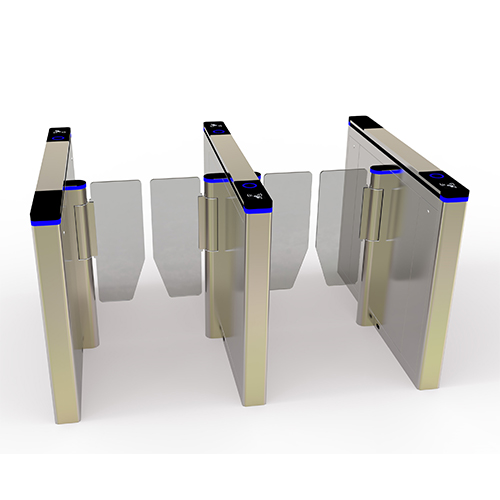

Automatic Speed Turnstile Gate JDSG-22

Automatic speed turnstile gate JDSG-22 is designed with a slim, mordern look and minimal footprint, operating in a fast, smooth and relible way with low power consumption and low noise, being an efficient crowd control solutions for narrow entry areas with high aesthetic and comfort requirements. It adopts unique variable speed transmission mechanism which can precisely control the movement position of speedlane turnstile, ensuring the movement more accurate and stable.

Featurers
1.Intuitive approach detection
2. Slim tapered housing with ergonomic design and small footprint
3. Precision controlled tempered glass obstacles
4. In case of emergency the obstacles can be unlocked with a simple push to automatically open
5. Electro-mechanical locking to withstand forced entry attempts
6. Silent and smooth in operation
7. Stylish and flexible design able to virtually blend infinite aesthetics within architectural interior needs
8. Wider passages and higher obstacles
9. Glass obstacles up to 1800mm without or with straight or sloping overhang
10. Intelligent user guidance

Applications
Upscale corporate lobbies,
High rise building entrances
Luxury apartment complexes
Universities
Commercial office buildings
Government agencies

Parameters

Housing Material	1.5mm~2.0mm #304 stainless sheet
Dimension	1400 x 120 x 980mm
Power Supply	AC220V / AC110V, 50/ 60 Hz
Channel Width	600~900mm
Drive Motor	DC 24V brushless motor or servo motor
Pass Speed	35 ~45 persons per minute
Input Interface	Dry contact signal or +12V level signal or DC12V pulse signal
Rotating Direction	Bi-directional
Communication interface	RS485
Gate open when power failure	Yes
Open Time	0.2 second
Life Cycle	5 million times
Working Temperature	-30°C~+70°C
Working Environments	Indoor, outdoor (with shelter)

Automatic Speed Turnstile Gate Design

AutomaticSpeed Turnstile Gate

Project Cases for Automatic Speed Turnstile Gate

What is an automatic speed turnstile gate?
Automatic speed turnstile gate,an upgraded touchless turnstile, is a security turnstile or handicap turnstile which provides contactless operation, using optical beam detection and motorized opening/closing to fully automate the entry process. With motorized barriers, the access control turnstiles do not need user to contact when opening and closing. Integrated with temperature check, facial recognition, proximity scanners, or other access control solutions, they can achieve fully touchless functionality.

How does fastlane speedgate turnstile work?
Automatic speed turnstile gate, as a touchless turnstile, functions by fixing in pairs, by which it is important to choose the right number of these turnstiles for specific projects. Meanwhile, considering the quantity for pedestrian traffic and for access for the disabled is also very important. Take speed turnstile JDSG-27 as example, which include single-wing type and dual-wing type. 2 single-wing type are required for a single-lane pass, and a 2-lane passage includes 2 singe-wing type JDSG-27 fixed on each side of a dual-wing type JDSG-27. In addition, most of our touchless turnstiles provide wide lane up to 900mm width for disabled access.

Can automatic speed turnstile gate be integrated with 3rd party access control systems ?
Off course, automatic speed turnstile gate is comptiable with a wide variety of access control systems by dry contact. Card pass, fingerprint / handprint reader, face recognition, barcode reader, thermal camera and token applications can integrate with such access control turnstiles.

What will happen when power off and in emergency situation?
Automatic speed turnstile gate instantly automatically unlocks for free passage under emergency situations (power outages, fire, etc)

Can automatic speed turnstile gate be used indoor and outdoor?
Off course, automatic speed turnstile gate is made for indoor or outdoor situations. For all outdoor applications, we use 304 stainless steel to prevent corrosion.

Does automatic speed turnstile gate give access to ADA pedestrians?
Yes, automatic speed turnstile gate provides wide lane up to 900mm for the disabilities to allow for wheelchairs.
