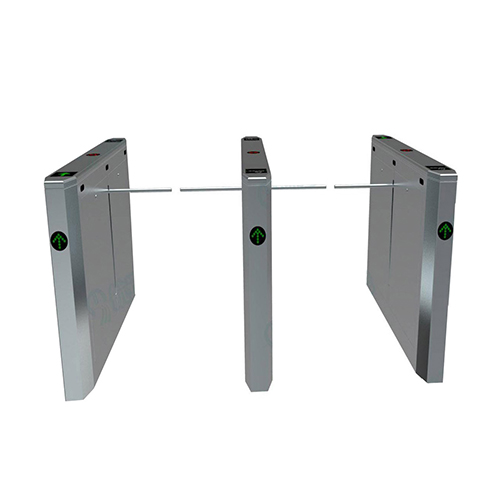

Slim drop arm barrier turnstile, drop arm barrier gate, automaticdrop arm turnstile
Drop arm barrier turnstile JDYYZ-1 is an effecient contactless crowd control solution for upscale corporate lobbies, high rise building entrances, luxury apartment complexes, universities, and anywhere autonomous entry and aesthetics are important. It adopts high-quality DC brushless motor and advanced positioning technology, ensuring the movement of security turnstile in a fast, accurate, stable and quiete way with low-noise, low-power consumption, and a longer service life; In addition,drop arm barrier turnstile
Features
1. Slim cabinet allow installation in compact spaces
2. Cabinet and lid options to blend with any environment
3. Drop arms retract quickly and smoothly to allow passage
4. Very intuitive for users and attendants
5. Simplified integration to access control and visitor management systems
6. Quick, precise and reliable arm movement – no need for constant adjustments
7. Multiple inputs to allow access control systems to implement operational mode changes
8. Barrier easily pushes open manually in case of power failure
9. Designed for continued use and maintenance-free performance
10. Multiple Access Modes (Card in/card out, free exit, and lane closed modes for either direction)
Applications
Upscale corporate lobbies
High rise building entrances
Luxury apartment complexes
Universities
Data centres
Sensitive sites
Parameters
Housing Material | 1.2mm~2.0mm #304 stainless sheet |
Dimension | 1200 x 165 x 990mm |
Power Supply | AC220V / AC110V, 50/ 60 Hz |
Lane Width | 600mm |
Drive Motor | DC 24V brush motor |
Pass Speed | 40 persons per minute |
Input Interface | Dry contact signal or +12V level signal or DC12V pulse signal |
Rotating Direction | Bi-directional |
Communication Interface | RS485 |
Rest Time after Power On | 3 seconds |
Open Time | 0.2 second |
Life Cycle | 3 million times |
Working Temperature | -30°C~+70°C |
Working Environments | Indoor, outdoor (with shelter) |
Drop Arm Barrier Turnstile Design
Drop Arm Barrier Turnstile System Diagram
Project Cases for Drop Arm Barrier Turnstile
