Full Height Single Tandem Turnstile JDFHT-3
Product Quick Detail
- Unit Price
- 1800 ~2600
- Place Of Origin
- China (Mainland)
- Minimum Order
- 1
- Packaging
- 1 peice per 3 cartons
- Delivery
- 10 Days
Specifications
Features
1. Shock absorption and reverse rotation locking capabilities
2. Simplified integration to access control and visitor management systems
3. Single-user, un-manned automatic access control
4. Grant fast and efficient access for authorised people
5. Automatic self-centering prevents over or under travel of rotating section
6 .Low power consumption as well as low noise operation
7. Longer turnstile life, minimal to no maintenance, higher user satisfaction
8. Easily change turnstile passage mode
9. Support automatic reset function
10. Anti-reverse rotation during transit
Applications
Public security departments
Bank vaults
Prisons
Military installations
Educational facilities
Stadiums
Parameters
| Housing Material | 1.5mm~2.0mm #304 stainless sheet |
| Dimension | 1600 x 1350 x 2300mm |
| Power Supply | AC220V / AC110V, 50/ 60 Hz |
| Channel Width | 600mm |
| IP Rate | IP45 |
| Pass Speed | 30 ~35 persons per minute |
| Input Interface | Dry contact signal or +12V level signal or DC12V pulse signal |
| Rotating Direction | Bi-directional |
| Communication interface | RS485 |
| Gate open when power failure | Yes |
| Open Time | 0.2 second |
| Life Cycle | 5 million times |
| Working Temperature | -30°C~+70°C, Relative Humidity: ≤90%, no condensation |
| Working Environments | Indoor, outdoor (with shelter) |

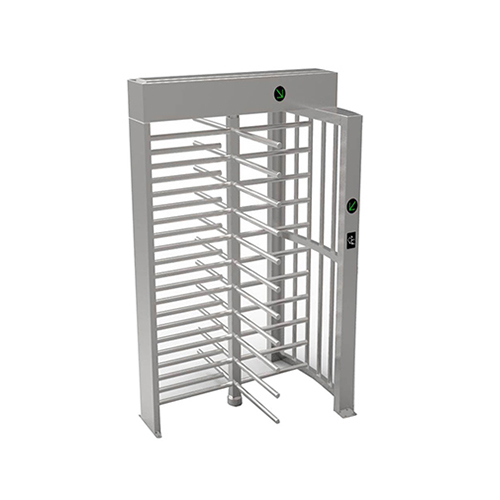

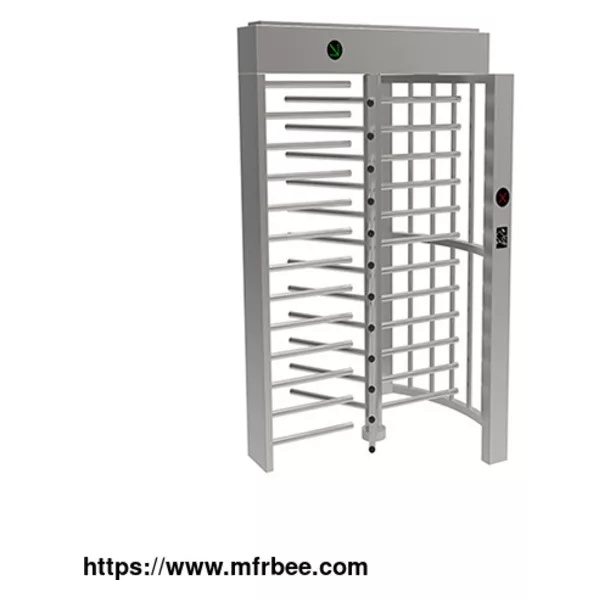

Full Height Single Tandem Turnstile Design
Full Height Single Tandem Turnstile System Diagram
Project Cases for Full Height Single Tandem Turnstile
