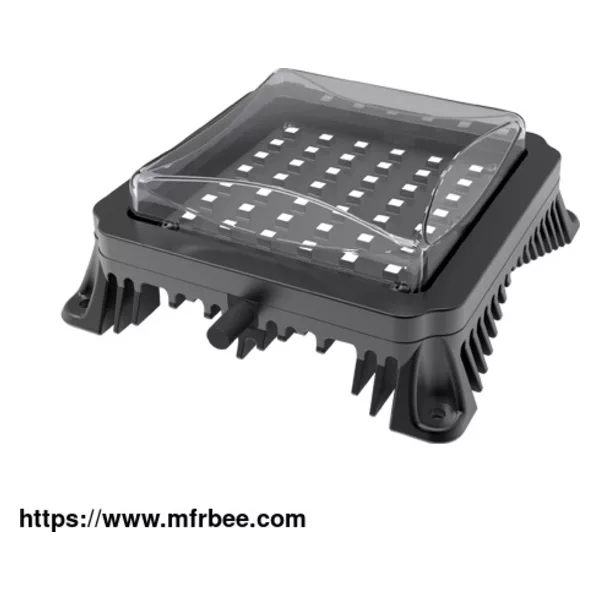

LED Pixel Light EXC-P130DM0

EXC-P130DM0 full-color series are a full-color LED series string pixel led light programming with extruded aluminum alloy housing, which is designed for outdoor landscape lighting by EXC-LED. Each EXC-P130X pixel is a separate lighting pixel, and each pixel can realize 256 grades grayscale changing. They can be used for indoor and outdoor applications, Customized pixel pitch, and easy installation.

Specification Optical Parameters of LED Pixel Light 9W EXC-P130DM0

LED Brand: CREE, Lumileds, Epistar, Taiwan series, Osram

Color: RGB, RGB+W, W, etc

Beam Angle: 120degree,Open beam and other angles optional

Source Life: 50,000h

Electrical Parameters of LED Pixel Light 9W EXC-P130DM0

Working Voltage: DC24V

Rated Power: Maximum:W(6W/9W), RGB(5//8W), RGB+W(9W)

Control Parameters of LED Pixel Light 9W EXC-P130DM0

Control Method: DMX512/On Off

Gray Scale: 8Bits/16Bits

Control System: EXC-ALL the lights control system

Structural Parameters of LED Pixel Light 9W EXC-P130DM0

Shell Material: Aluminum

Surface Color: Black&White, Other colors optional

Structure Size: 132mm x 132mm x 54.5mm (L x W x H, exclude Mounting Bracket)

Total Weight: 720g

Environmental Parameters of LED Pixel Light 9W EXC-P130DM0

Working Temperature: -40°C to 50°C

Storage Temperature: -40°C to 65°C

Protection rating: IP66

Application environment: Outdoor
