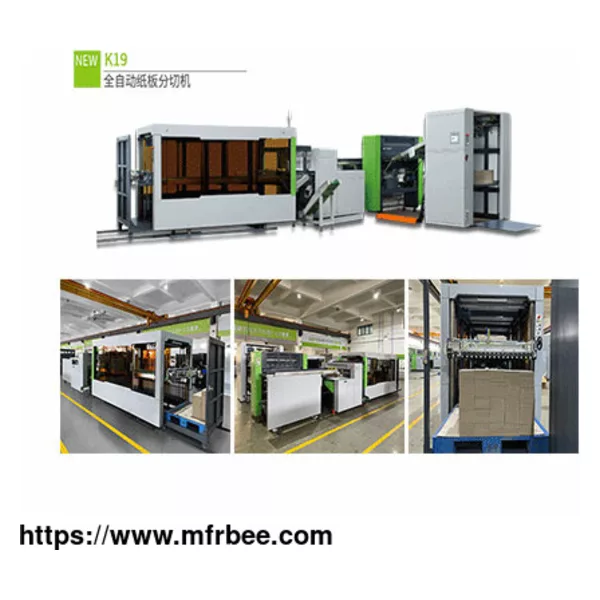

Automatic Grey Board Slitting Machine

Minimum Order
1
Packaging
N/A
Delivery
15 Days
Automatically complete vertical board cutting and horizontal board cutting. Only one person is required to operate the paper roll slitting machine, which can reduce 3-5persons, reduce the intermediate handling links, automatically discharge and concentrate transporting the scraps, and automatically complete the finished products stack.

The whole tray of boards is fed automatically.

The long-bar board is automatically conveyed to the horizontal cutting after the first cutting is completed;

After the second cutting is completed, the finished products are stacked into the whole tray;

The scraps are automatically discharged and concentrated to an outlet to convenient scraps disposal;

Simple and user-friendly operation process to reduce production process. Optional digital rualer.

As one of the experienced roll slitting machine manufacturers, Growing offers top-quality roll to roll slitting machine for sale. Contact us now!

Specification of Automatic Grey Board Slitting Machine
Original board size(L× W) min. 750×750mm | max. 1220×1220mm
min.750×150mm | max.1220×450mm
Finished size(L×W) L:150-450mm W: 30-600mm
Board thickness 1-4mm
Capacity of the board feeder Max.30sheets/min
Capacity of the strip feede Max. 120m/min
Machine power 11kw / 50HZ/ 3Phase
Machine Original board size(L× W) 11000×6700 × 2200mm

As one of the packaging machinery manufacturers, we provide die cutting and creasing machine, roll to roll slitting machine and etc. If you want to know the details of our product, contact us.
