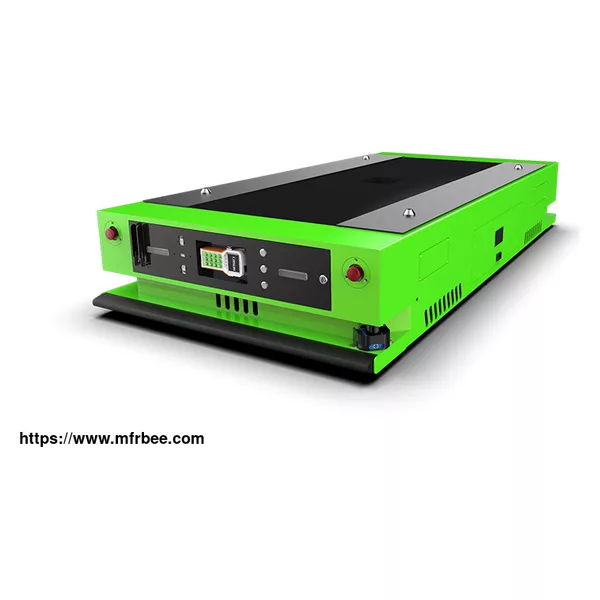

C2-33 Omni-directional Latent Lifting AGV
Product Quick Detail
- FOB Price
- USD $15,000.00 / Piece
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- Plywood box
- Delivery
- 45-60 days
Specifications
C2-33 Omni-directional Latent Lifting AGV can move to the bottom of the material trolley, lift the material trolley and move to the destination. In addition, the lifting AGV also has the functions
of in-situ rotation and side shift, the maximum load capacity can reach 3000KG, and the moving speed can reach 45m/min when fully loaded. You can choose to use QR code navigation or magnetic stripe
navigation according to the actual situation of the site.
Parameters of C2-33 Omnidirectional Latent Lift AGV
Navigation Magnetic / QR code robot navigation / SLAM Stopping accuracy ±10mm
Vehicle dimensions L2250*W1100*H400(mm） Driving mode Steering-wheel drive
Moving direction Move forward/backward/sideways, rotate Charging mode Side/Ground charging
Load capacity 2500KG / 3000KG Battery Lithium battery
Rated speed 0~45m/min Communication WiFi/5G
Lift height 50mm Safety warning Light + Audio
Turning radius 1200mm (magnetic) Safety sensing range ≤3m(adjustable)
Guidance accuracy ±10mm Safety protection Front obstacle detecting sensor+Mechanical anti-collision bumper +Emergency-stop switch
Core Advantages of C2-33 Omnidirectional Latent Lift AGV
01
Strong carrying capacity
The carrying capacity can reach 3000KG, and the full load moving speed can reach 45m/min.
02
Strong adaptability to the environment
The map is self-learning, and the operation map is automatically updated according to the on-site environment when working, which greatly improves the environmental adaptability.
03
Lifting control
It can interact with the elevator to complete the operation of automatically going up and down floors.
04
High positioning accuracy
The primary positioning accuracy can reach ±10mm, and the secondary positioning accuracy can reach ±5mm
05
High work efficiency
Equipped with a full servo drive, it can increase the speed quickly (0-72 meters per minute only takes 3 seconds), and has a fast rotation function (only 3 seconds for in-situ rotation)
06
Multi-AGV linkage
Synchronous linkage of multiple AGVs is suitable for complex material handling scenarios.
07
Automation and labor saving
No manual intervention is required in the production process, and the scheduling system is fully automatic.
08
Fault self-check
With fault self-checking function, remote fault diagnosis and self-recovery function.
09
Automatic battery charging
When the AGV detects a low battery state, it will automatically move to the charging station for charging. The online time can reach 24 hours a day to improve productivity.
10
Multiple security protection
Equipped with laser obstacle detection sensor, mechanical anti-collision device and sound and light warning to ensure safe operation
As one of the most professional agv manufacturers, we provide amr automated mobile robot, avg robot, automated guided vehicle for sale, etc. For agv robot price or more information, please feel
free to contact us!
