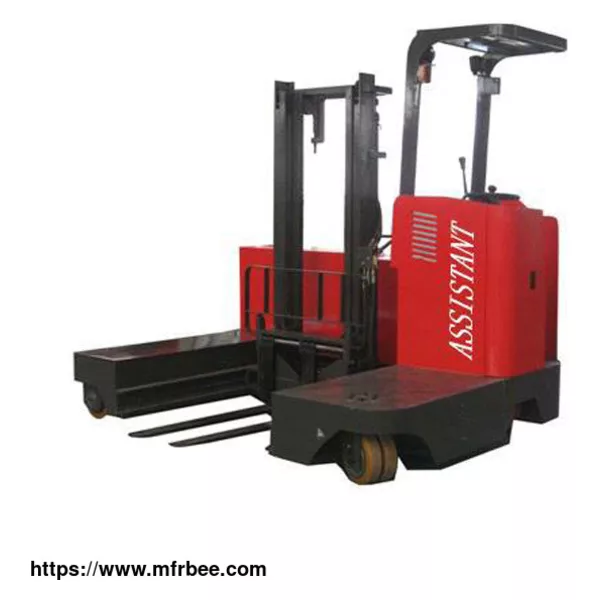

Side Loading Electric Forklift
Product Quick Detail
- FOB Price
- USD $50.00 / Piece
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- NUDE
- Delivery
- 30 days
Specifications
We are professional electric side loader forklift supplier and factory in China. We can produce the product according to your requirements.
TD Series side loading forklift truck, rated load capacity: 2500kg, lift hieght:7200mm, used for long material transportation;
1. The lift cylinder with buffering function, to ensure the goods' safety during the lift and down;
2. All electric connector with water-proof and dust-proof design;
3. Better Stability;
4. Side battery loading design, easy to change and maintanin the battery;
5. Use Vertical drive cell to Increase the working life;
6. Ergonomics design and shock absorption configuration, with more comfortable operation;
7. Buffering design for lift cylinder, to imporve the function of mast in lifting and downing,to ensure the safe for products;
8. Electromagnetism braking with Lose-electric type have reliable braking result, it's can easy to make the parking brake safely;
9. Battery with side-pulling function, easy to change and maintenance.
Side lift forklift trucks Parameters
Description TD15-30 TD25-30
Model No.
Rated Capacity (KG) 1500 2500
Operate Type Stand-on Stand-on
Max. Lifting Height (MM) 3000 3000
Min. Turning Radius (MM) 2422 2572
Min. Stacking Aisle-- mm (1000*1000 Pallet) 2622 2772
Max Travel Speed km/h -laden/unladen 6.0/7.0 6.0/7.0
Load center MM 500 500
Fork Dimensions -L/W/T---mm 850*100*35 920*100*45
Lifting Speed (MM/S)-laden/unladen 120/270 120/270
Overall Length (MM) 2450 2580
Overall Width (MM) 1830 2000
Height-Overhead guard--mm 2250 2330
Height---Mast Lowered (MM) 2104 2094
Height-Mast Extended w/ Load-Backrest -mm 3885 3875
Height--Free Lift --mm 100 100
Outrigger Height ---mm 415 415
Tilt Angle---- Upward/Downward--deg. 3/5 3/5
Fork Spread Range (MM) 247-973 247-1072
Reach Stroke 1050 1065
Min Ground Clearance--mm 84 88
Wheel Type Polyurethane Solid Tyre
Driving Wheel (MM) Φ343×108 Φ343×120
Balance Wheel (MM) Φ180×76 Φ204×80
Front Wheel (MM) Φ267×114 Φ267×114
Swivel Caster Wheel---mm Φ267×76 Φ267×76
Battery V/AH-Domestic BRAND 48V /300 AH 48V/400 AH
Service Brake Electromagnetic
Parking Brake Electromagnetic
Charger-Intelligent 48V /40 A 48 V/50 A
Driving Motor (KW) 5.5 (AC) 5.5(AC)
Lifting Motor (KW) 6.3 7.5
