Fiber Optic Switch
Product Quick Detail
- FOB Price
- USD $100.00 / Piece
- Minimum Order
- 10
- Place Of Origin
- China
- Packaging
- N/A
- Delivery
- 21 Days
Specifications

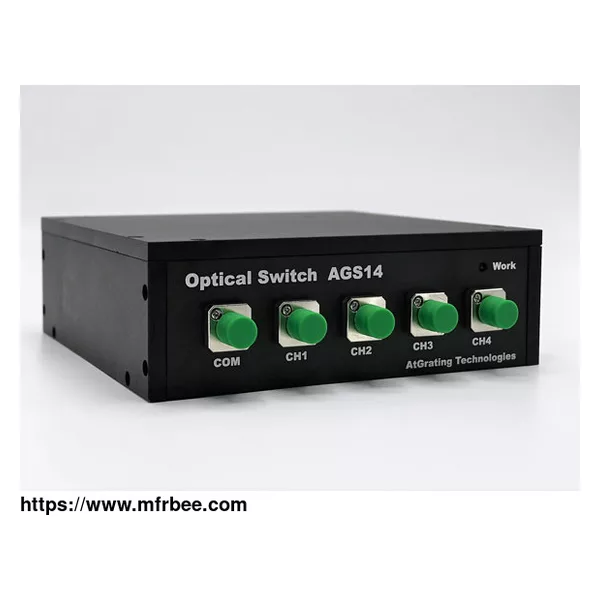

The fiber optical switch AGS14 is a non-mechanical designed fiber optic device based on the Faraday effect with Bi-refringent crystal and micro-optical components. Without moving parts in the
design, the switch can meet the high requirement on reliability, durability and high switching speed.
Features Of Fiber Optic Switcher
High Speed
Non-Mechanical
High Stability & Reliability
Application Of Fiber Optic Switcher
Fiber Optical Sensing
Switching
Latching
Signal Monitoring
Specification Of Fiber Optic Switcher
1x4 Min Typical Max Unit
Operation Wavelength 1500 1550 1600 nm
Insertion Loss 1.5 1.1 1.5 dB
PDL 0.1 0.2 dB
ER(PM version) 18 dB
Cross Talk 32 50 32 dB
PMD 0.1 0.2 ps
Return Loss 50 dB
Durability 1011 cycle
Operating Temperature -5 70 ℃
Optical Power 500 mW
Storage Temperature -40 85 ℃
Switch Type Latching
Fiber Type SMF28 / PM1550
Switch Time 0.8 ms
Power Input DC 12V
Dimension 152mm*142mm*50mm
Serial (RS-232) Interface
Electrical characteristics: Conforms to the EIA-574 standard (EIA-232 (RS-232), 9-pin) Baud rate: 2400, 9600, 57600, 115200, 230400
Start bit: 1 bit, fixed Data length: 8 bit, fixed
Parity: Odd, Even, or None Stop bit: 1 bit(default)
Connector: DELC-J9PAF-13L6 (JAE or equivalent) Flow control: None
UART bit formats are listed in the following table:
Parity UART frame
None | Start bit | 8-bit data | Stop bit |
Odd/Even | Start bit | 8-bit data | Parity bit | Stop bit |
Ethernet Interface
Electromechanical specifications: Conforms to IEEE802.3 Transmission method: 10BaseT/100BaseTX Ethernet Communication protocol: TCP/IP
Connector type: RJ45
Port number used: 8080 (fixed)
Configure Network Information
Visit the website http://192.168.1.100/, 192.168.1.100 is a device IP address. The default network information is on the nameplate attached to the device.
Fiber Optic Switcher
Note: Visit configuration website will increase the switch time when the AGS14 is working at switch mode.
The Ethernet port just supports static IP mode, please avoid conflict with other network devices in the same subnet. If the device has been set to the wrong IP and can`t be accessed any more，push
the Restore Button for 6 seconds to restore the default settings. When push down the Restore Button, the LED will twinkle until restore succeed.
Data Frame Formats About TCP/UART
A complete frame contains 2 bytes: fixed start byte and command byte. Start byte Command byte
0xF0(Fixed) 1-byte data
Once the client transmits the command, it needs to wait for the device to reply.
Function Transmit frame (hexadecimal) Reply frame (hexadecimal)
Say hello, use for test connection, the device will do nothing 0xF000 0xF000
Switch to channel 1 0xF001 0xF001
Switch to channel 2 0xF002 0xF002
Switch to channel 3 0xF003 0xF003
Switch to channel 4 0xF004 0xF004
