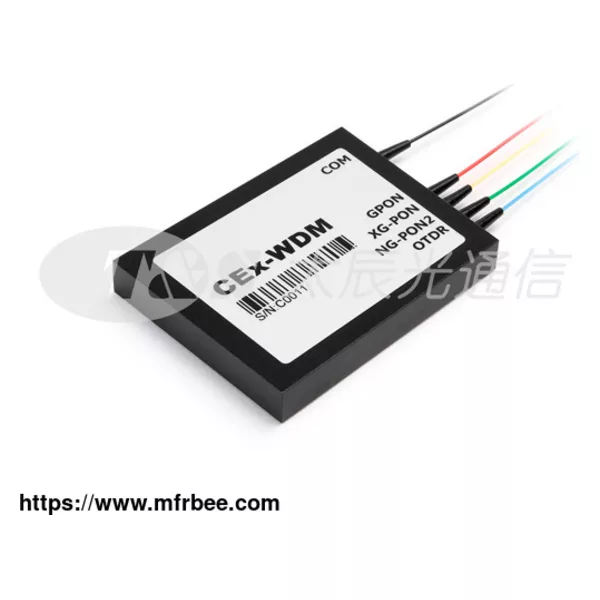

CEX WDM
Product Quick Detail
- FOB Price
- USD $100.00 / Piece
- Place Of Origin
- Shenzhen
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
T&S Cex-WDM is a kind of coexistence WDM product, which is mainly used in optical fiber access network. It can use EPON/GPON network of 1 to 2.5Gbps and XG-PON network of 10Gbps rate in the
same ODN. , And even use NG-PON2 network with a rate of 10 to 40Gbps; using Cex-WDM can save a lot of ODN capital investment at the access network level.
Features of Cex WDM
Automatic Optical alignment
Bi-directional
Optical path epoxy free
Low insertion loss & high Isolation;
Thin Film Filter Technology
RoHS compliant
Applications of Cex WDM
T&S’ CEx-wdm Series is designed for Next Generation Passive Optical Networks (NG-PON), a new optical access system that coexists with GPON on the same ODN. Our CEx-wdm Modules, including GPON,
XG-PON, NG-PON2 and OTDR, are designed to accommodate NG-PON1 and NG-PON2 TWDM wavelengths to maximize the density and enhance the speed of optical distribution network.
Specifications of Cex WDM
Parameters Unit Specification
Operating Wavelength Range nm 1260～1660
GPON Bands Operating Wavelength nm 1290～1330 & 1480～1500
Insertion Loss* dB ≤1.0
Isolation@XG-PON
bands&NG-PON2bands&OTDR bands dB ≥35
XG-PON Bands Operating Wavelength nm 1260～1280 & 1575～1581
Insertion Loss* dB ≤1.6
Isolation@GPON
bands&NG-PON2bands&OTDR bands dB ≥35
NG-PON2 Bands Operating Wavelength nm 1524～1544 &1596～1625
Insertion Loss* dB ≤1.8
Isolation@GPON
bands&XG-PON bands&OTDR bands dB ≥40
OTDR Bands Operating Wavelength nm 1640～1660
Insertion Loss* dB ≤2.2
Isolation@GPON
bands&XG-PON bands&NG-PON2 bands dB ≥35
Pass Channel Ripple dB ≤0.3
Return Loss dB ≥45
Directivity dB ≥45
Polarization Dependent Loss dB ≤0.2
Polarization Mode Dispersion Ps ≤0.2
Power handling mW ≥300
Fiber Type / Customer specified
Fiber Length m 1.0m or customer specified
Connector Type / Customer specified
Operating Temperature ℃ -5~+70
Storage Temperature ℃ -40～+85
Package Dimension mm L100 x W80 x H10 ABS Box or
L60 x W50 x H8 Metal Box
Note:
• Insertion loss excluding connector loss.
• Customized dimension is available.
As a professional wdm provider, T&S provides various kinds of high-quality optical communications products.
