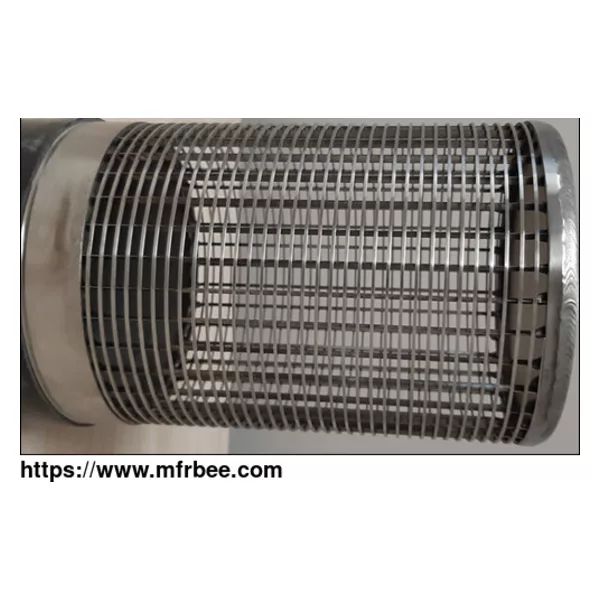

Perforated SS Tube

Stainless Steel Perforated Tubes are manufactured by welding of perforated stainless steel

Stainless Steel 304 Perforated Tube Racks - Round Tube
Perforated tubing ss 304 for test tube racks
Material specifications:
Tube, 1.5" round, 1/16" perforated 304 S/S, 24 ga. 1/8 cntrs, 23% open.
6 feet lengths

Tube, 1.5" round, 3/32" perforated 304 S/S, 24 ga. 5/32 cntrs, 33% open.
Standard length in 6 ft.

SS perforated test tube racks can be made in 316 or other grades, the perforatation can be round, square or customized.

Perforated Tube for Dyeing Style Process

Perforated pipe used in dyeing autoclave.
Internal diameter: 80 mm
Thickness: 5 mm
Perforated height: 400 mm
Hole diameter: 5 mm or 10 mm
Perforated pattern: staggered
Material: stainless steel

Hygienic Perforated Stainless Steel Tubing

Perforated stainless-steel tubing used in pipework to ozonate cold deionised water.
Ozone gas is introduced into the water by means of a venturi method into a recirculated ozonated water from the tank. Inside the tank, the ozone-rich water exits at the opposite side of the tank relative to the suction side for the recirculation line. The tank is approximately 4 metres wide and 4 metres high. The recirculation pipework is 1 inch in size.
Material: 316 (Austenitic) used in the tank
Hygienic connection – end to be tube or pipe.

Perforated Tubes for Scientific Experiment
Dimensions 5 or 6 cm long, ID 3 cm
Thickness perhaps 0.05 - 0.1 cm.
Tubes perforated with small holes perhaps 0.2 cm in diameter
High transmission, min. 70%.
Holes square or rectangular.
Material: Stainless or aluminum, copper

Perforated Screen Filter Tube
Measurements below:
40" inches long
4" and 7/16" inches diameter
Stainless thickness 1.55mm 316
Screen hole size 3.15mm
Upper sleeve size 26.42mm
Centre sleeve size 9.69mm
Lower sleeve size 17.31mm
