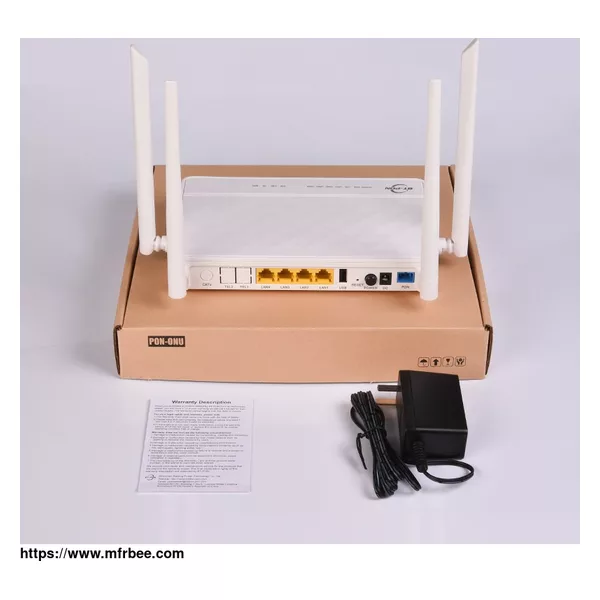

4ge 2.4g&5g Dual-band Wifi Onu 1200mbps

BT-763XR

4GE+2.4G+5G(dual band / 5dBi antennas）

♦ Support EPON/GPON mode and switch mode automatically

♦ GPON:Compliance with IEEE 802.3ah & itu-t g.984.x standard

♦ GPON:8 T-CONTs,32 GEM Ports

♦ Integrate OMCI(GPON)/OAM(EPON) and TR-069 remote configuration and maintenance

♦ Layer 3 Home Gateway/CPE features with Hardware NAT, support Multiple WAN, Route/Bridge mode, etc

♦ Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, Spanning Tree, etc

♦ Support PPPoE/ Static IP/ DHCP

♦ Bi-directional FEC

♦ Support IPv4, IPv6 and IPv4/IPv6

♦ Support firewall level Settings, support based on URL/MAC/ IP/ address frame filtering

♦ Support multicast IGMP v2 proxy/ snooping, support MLD proxy/ snooping

♦ Qos supports PQ, WRR, and CAR queue scheduling

♦ Provide Maximum rate 300Mbps 2.4GHz Wireless interface,and Maximum rate 866Mbps 5.8GHz Wireless interface，,2T2R external antenna, support multiple SSID Settings

♦ Support DDSN, ALG, DMZ and UPNP

Country: China (Mainland)
Market: South Ameticas
Founded Year: 2018
Address: Building B, Laowei Industrial Zone, Longhua District, Shenzhen, China
Contact: ONU OLT Factory_BT-PON
