HPC charger(high power charging station)is a new and innovative solution to the growing demand for fast high current charging of next-generation electric vehicles(E-Bus and Luxury EVs).

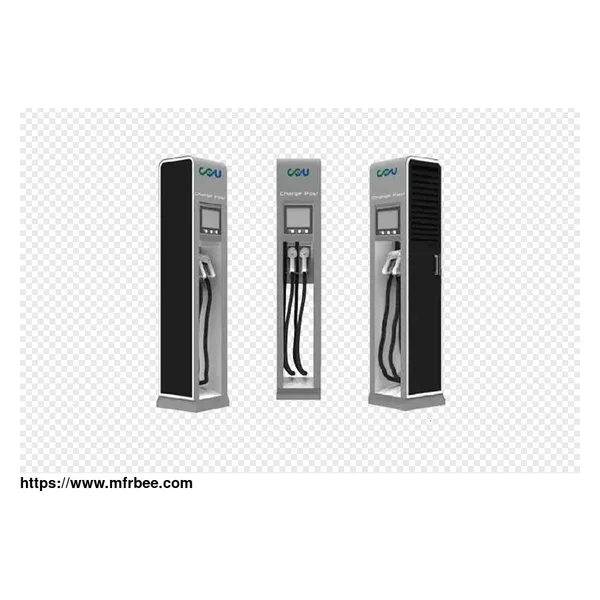

HPC Ultra-Fast High Power Charging Station 350kW
EVHS-350, High Power EV Charging Station is a new and innovative solution to the growing demand for fast high current charging of next-generation electric vehicles(E-Bus and Luxury EVs). EVHS-350
system adopts modular structure design and the most advanced ultra-fast high power charging technology. This kind of high power charger consists of one power unit and 2 charge posts. It’s a high
power charger that can charge any CCS Compatible eBus or eVehicles with 350kw, 500A max.
Compatible car brands
BMW, Volkswagen, GM, Porsche, Audi, Peugeot, Citroen, Kia, Renault, Daimler, Mercedes, Jaguar
High Power Charging Station Features
HPC charger supports CCS connector up to 500A liquid-cooled cables. It is a reliable, robust modular hardware. This fast charging EV station is simple, quick and easy to install. Daylight readable
touch screen display RFID authorization.
High Power Charger Application
Public operations such as highway rest stops, petrol stations, airport etc. Private operations such as EV dealers, EV fleets etc.
High Power Charging Station Specifications
AC Input for the DC Output Power connection 3P + N + PE
Voltage range 400 Vac ± 20 %
Frequency 50 Hz or 60 Hz
Overall efficiency 95%
DC Output Voltage 150Vdc to 1000Vdc
Max Current 500A
Nominal Power 350kW
others DC-Interface CCS 2
RFID system ISO/IEC14443A/B, Mifare; Optional: FeliCa™ 1, NFC reader mode, ISO/IEC15693, Calypso, Legic
Network connection Standard configuration: LAN Interface; Support 2G/3G/4G/Wi-Fi modem
Communication Protocols OCPP 1.6J
Operating temperature -35ºC-60ºC ( -20ºC to -30ºC, heating required)
Storage Temperature -40 ºC to +70 ºC
Operating humidity ≤95% non-condensing
Protection degree IP54 , IK10
