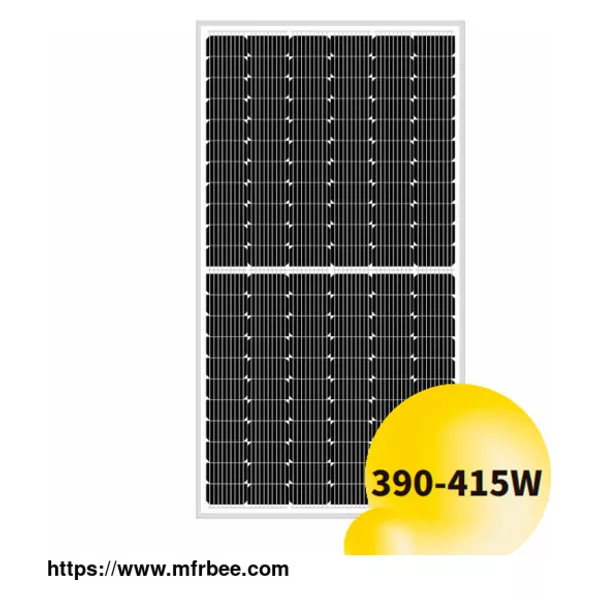

390W-415W Mono Solar Panel With 132 Pieces Solar Cells

132 solar cells with a side length of 166mm can be made into 390w solar panel, 395w solar panel, 400w, 405w, 410w, 415w. The larger the size of solar panels means greater efficiency, usually used in personal residential roofs and some small consumer products. With 25 years of power output and 12 years of quality assurance, customers in southwestern Asia have a soft spot for our solar panels. You can purchase solar panels directly.

Parameter Of 390W-415W Mono Solar Panel With 132 Pieces Solar Cells

Electrical Characteristics Of 390W Mono Solar Panel With 132 Pieces Solar Cells

Module Type SLB132M8-390

Maximum Power (W) 390

Tolerance Wattage (W) 0~+5

Optimum Power Voltage (VMP) 37.18

Optimum Operating Current (IMP) 10.49

Open Circuit Voltage (VOC) 44.49

Short Circuit Current (ISC) 11.41

Module Efficiency (%) 19.5

Electrical Characteristics Of 395W Mono Solar Panel With 132 Pieces Solar Cells

Module Type SLB132M8-395

Maximum Power (W) 395

Tolerance Wattage (W) 0~+5

Optimum Power Voltage (VMP) 37.37

Optimum Operating Current (IMP) 10.57

Open Circuit Voltage (VOC) 44.65

Short Circuit Current (ISC) 11.5

Module Efficiency (%) 19.8

Electrical Characteristics Of 400W Mono Solar Panel With 132 Pieces Solar Cells

Module Type SLB132M8-400

Maximum Power (W) 400

Tolerance Wattage (W) 0~+5

Optimum Power Voltage (VMP) 37.52

Optimum Operating Current (IMP) 10.66

Open Circuit Voltage (VOC) 44.85

Short Circuit Current (ISC) 11.59

Module Efficiency (%) 20

Electrical Characteristics Of 405W Mono Solar Panel With 132 Pieces Solar Cells

Module Type SLB132M8-405

Maximum Power (W) 405

Tolerance Wattage (W) 0~+5

Optimum Power Voltage (VMP) 37.74

Optimum Operating Current (IMP) 10.73

Open Circuit Voltage (VOC) 45.06

Short Circuit Current (ISC) 11.66

Module Efficiency (%) 20.3

Electrical Characteristics Of 410W Mono Solar Panel With 132 Pieces Solar Cells

Module Type SLB132M8-410

Maximum Power (W) 410

Tolerance Wattage (W) 0~+5

Optimum Power Voltage (VMP) 37.93

Optimum Operating Current (IMP) 10.81

Open Circuit Voltage (VOC) 45.28

Short Circuit Current (ISC) 11.74

Module Efficiency (%) 20.5

Electrical Characteristics Of 415W Mono Solar Panel With 132 Pieces Solar Cells

Module Type SLB132M8-415

Maximum Power (W) 415

Tolerance Wattage (W) 0~+5

Optimum Power Voltage (VMP) 38.07

Optimum Operating Current (IMP) 10.9

Open Circuit Voltage (VOC) 45.46

Short Circuit Current (ISC) 11.83

Module Efficiency (%) 20.8

As one of the most professional solar panel supplier china, we provide 190w solar panels for sale, solar panel 185w, solar modules for sale, solar panel bulk and etc. Want to know pv power solar panel price or 390w solar panel price, contact us.

There are many suppliers of solar energy equipment, but we are one of the best choices for you.
