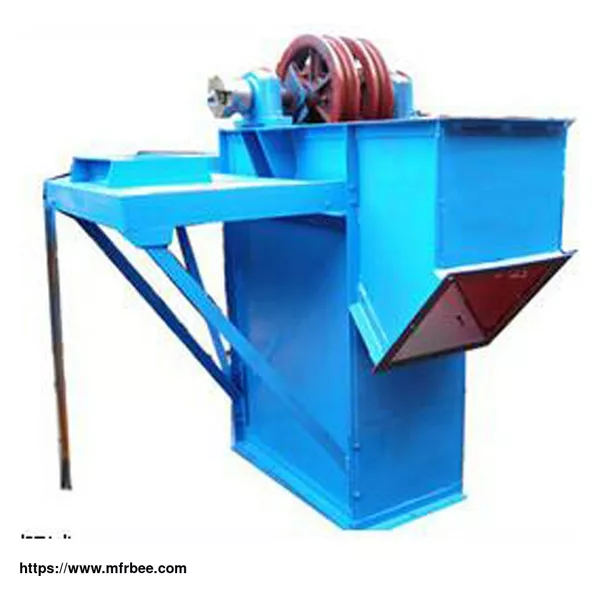

Industrial Bucket Elevator

The industrial bucket elevator has the advantages of large conveying volume, high lifting height, stable and reliable operation, and long life. The main performance and parameters of our industrial high temperature bucket elevator conform to JB3926---85 "Vertical Bucket Elevator" (this standard is equivalent to the international standard. And advanced foreign standards), traction ring chain in line with MT36 --- 80 "high-strength ring chain for mine", the hoist is suitable for conveying powdery, granular and small block-free grinding and grinding properties Small materials, such as coal, cement, stones, sand, clay, ore, etc., because the traction mechanism of the hoist is an endless chain, the industrial bucket elevator allows the delivery of higher temperature materials (material temperature does not exceed 250 °C). The maximum conveying height of the industrial bucket elevator is up to 40 meters. TG type up to 80 meters.

Types of Bucket Elevator for Sale

An industrial bucket elevator is a continuous conveying machine that uses a series of hoppers evenly fastened to the endless traction members to lift materials vertically. There are three types of industrial bucket elevators: ring chain, plate chain and belt. As a professional bucket elevator manufacturer and supplier, Senotay offers high quality bucket conveyor for sale including TH Type Bucket Elevator, TD Bucket Elevator and HL Bucket Elevator.

Bucket Elevator Uses

The industrial bucket elevator is suitable for lifting at a low place to a high place, and the supply material is automatically conveyed and continuously transported after the supply material is input into the hopper through the shaking table. According to the transmission volume, the transmission speed of the industrial bucket elevator can be adjusted, and the lifting height can be selected as required. The hopper of industrial bucket elevator is designed and manufactured by itself. The PP non-toxic hopper makes the bucket elevator more widely used. All industrial bucket elevator sizes are designed and manufactured according to actual needs. The bucket elevator machine is computerized meter design, suitable for food, medicine, chemical industry products, screws, nuts and other products to enhance the feeding, can be used to identify the signal through the packaging machine to control the automatic stop of the machine. As a dust collection system manufacturer, Senotay offers the portable mobile bucket elevator in cement plant and and the inclined bucket elevator for coal, grain, powder and sand at reasonable prices!

Bucket Elevator Working Principle

This is how an industrial bucket elevator works. The hopper picks up the material from the underlying storage and, as the conveyor belt or chain is lifted to the top, it turns around the top wheel and flips downwards. The bucket elevator pours the material into the receiving tank. The drive belt of the industrial bucket elevator with belt drive is generally equipped with a rubber belt, which is installed on the lower or upper drive roller and the upper and lower redirection rollers. Chain-driven bucket elevators are generally equipped with two parallel transmission chains, with a pair of transmission sprocket wheels above or below and a pair of reversing chain wheels below or above. Bucket elevators are generally equipped with an organic shell to prevent dust from flying in the bucket elevator.

Industrial Bucket Elevator Components

The industrial bucket elevator is composed of a shell, a traction element (conveyor chain), a hopper, a driving wheel (head wheel), a steering wheel (tail wheel), a tensioning device, a guiding device, a charging port (inlet port) and a discharge port. (Outlet).

a. Cylindrical bucket: deep bucket, the bucket mouth is 65°; inclined, large depth, used for drying, good fluidity, good delivery of granular materials spilled.

Shallow hopper: The mouth is inclined at an angle of 45° and has a small depth of moist and fluid granular materials.

[Deep hopper: Deep buckets are generally dry and fluid. ]

[Triangle hopper: The material is generally oriented self-flow unloading. ]

b. Pointed bucket: Its side wall extends beyond the floor and becomes a rib. When discharging, the material can be detached along the groove formed by a bucket rib and the bottom plate, suitable for bulky and heavy bulk materials transport.

Industrial Bucket Elevator Traction Members

Rubberband: The material is fixed to the taped mouth with screws and elastic spacers, with a width of 35 to 40mm, and the tape transfer temperature does not exceed 60°C. The heat-resistant tape can transport materials up to 150°C.

Chain: The single chain is fixed on the back wall of the hopper; the double chain is connected with both sides of the hopper. The chain hoist adopts single chain when the hopper width is 160-250mm, double-chain when the hopper is 320-630mm, and the main disadvantage is that the wear between the chain links is large and the number of maintenance is increased.

Sprockets: Bucket elevator drive sprocket. The sprocket is used to mesh with an exact pitch block on the pitch chain or cable and is a solid or spoke gear that meshes with the roller chain to transmit motion.

Sprocket tooth design: The sprocket tooth shape must ensure that the chain enters and exits the mesh smoothly and freely, minimizes the impact and contact stress of the link during meshing and is easy to process. The sprocket material should ensure that the gear teeth have sufficient strength and wear resistance, so the tooth surface of the sprocket is generally heat-treated to a certain hardness.

Bucket Elevator Systems Features

Tops elevator buckets have the features of small driving power, adopting influent feeding, inducing discharge and large-capacity hopper-intensive arrangement. When the material is lifted by the industrial bucket elevator, there is almost no return and excavation phenomenon, so there is little invalid power.

The bucket elevator systems have a wide range of lifting. This kind of hoist has fewer requirements on the types and characteristics of materials. The bucket elevator systems can not only improve the general powdery and small granular materials but also can improve the materials with greater abrasiveness. In addition, the bucket elevator systems have good sealing and less environmental pollution.

The operational reliability of bucket elevator systems is good, the advanced design principle and the processing method guarantee the reliability of the whole industrial bucket elevator machine operation, and the time of no failure exceeds 20,000 hours. The lifting height is high. The hoist runs smoothly, so a higher lifting height can be achieved.

The service life of industrial bucket elevator is long, the feeding of the hoisting machine adopts the inflow type, there is no need to use the bucket to excavate the material, and the materials are rarely squeezed and collided. Our industrial bucket elevator for sale is designed to ensure that there is little spillage of materials during feeding and unloading, reducing mechanical wear.
