NPT Cable Gland

Place Of Origin: China

Minimum Order: 1000

Packaging: 50 pcs per bag

Delivery: 7 Days

The outstanding features of this series of cable glands are safe, durable, and economical. Our NPT cable gland is Made of PA nylon material, with long service life, good toughness, wear-resistance and oxidation resistance.

NPT Cable Gland Specifications

Product PLASTIC CABLE GLAND NPT THREAD

Category Plastic Cable Gland

Thread NPT Thread

Connector Type Installable Straight

Locking System/ Mating Style Screw

Material Sealing nut, body and lock nut are made of UL approved nylon PA66, the seal and washer are made of nitrile butadiene rubber (NBR).

Working termperature: -40 to 100 centigrade in static state,instantaneous heat resistance up to 120 centigrade,-20 to 80 centigrade in dynamic state,instantaneous heat resistance up to 100 centigrade.

Characteristics Special design of clamping die and rubber part,large range in clamping cable, ultra-strong stretching resistance, waterproof, dustproof,and high ability to resist salt,acid,alkali, alcohol,grease and general solvent.

IP Rating IPX7

Standard UL94 V2

Additional Description With washer and lock nut

Color Gray, black cable glands are usually in stock . Other colors can be customized on request

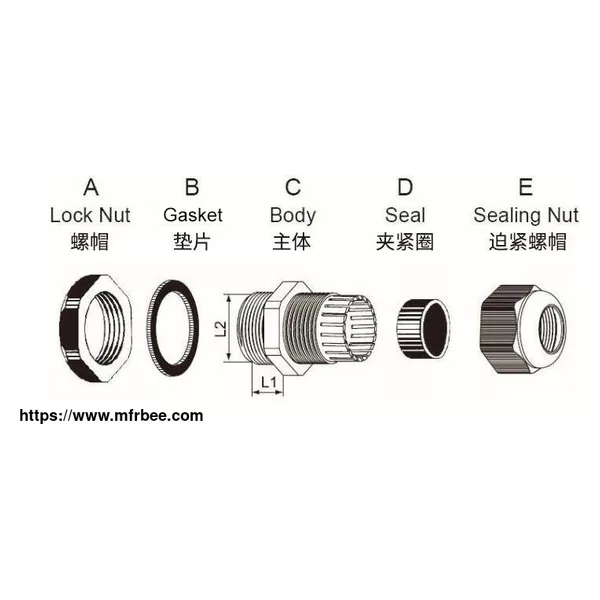

NPT Cable Gland Parameters and Drawing

Model Thread Size Cable Range (mm) Thread OD L2 (mm) Thread Length LI (mm) Spanner Size A & E (mm) Qty/bag

NPT3/8" NPT3/8・ 6 ~ 10 17.1 15 22 100

NPT3/8" NPT3/8, 4-8 17.1 15 22 100

NPT1/2" NPT1/2" 8 ~ 14 21.3 15 27 100

NPT1/2" NPT1/2, 6-11 21.3 15 27 100

NPT3/4" NPT3/4* 12 ~ 18 26.6 15 33 100

NPT3/4" NPT3/4" 10 - 16 26.6 15 33 100

NPT1" NPT1* 18 - 25 33.5 17 41 20

NPT1" NPT1* 16 ~ 22 33.5 17 41 20

NPT1 1/4 NPT1 1/4 24 ~ 32 42 17 50 20

NPT1 1/4 NPT1 1/4 20 - 25 42 17 50 20

NPT1 1/2 NPT1 1/2 22 ~ 32 48 17 57 20

NPT1 1/2 NPT1 1/2 20 - 26 48 17 57 20

As one of the most professional nylon cable ties manufacturers, we provide china cable glands, multi wire cable gland, npt cord grip, zip tie holder and etc. Want to know more? Please contact us.
