Plastic Pipe Welding & Cutting Machines
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- N/A
Specifications

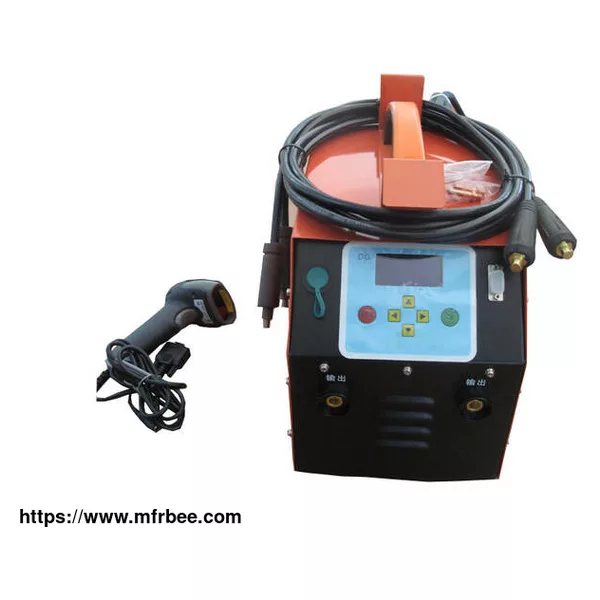

Electric Welding Equipment
The electric welding machine is the special equipment for PE pipe electric melting welding. It can supply constant welding voltage or welding current. It can also check and control the welding
process so that the welding results reach the best form.
The main Features that electric welding machine for sale has as below:
Design & manufactured into ISO12176 international standard for Electric welding machine
High-level MCU control core, large LED screen display, showing all welding parameters.
Lightweight, small size, easy to operate, save manual costs.
Full welding process monitoring can terminate & improve the abnormal welding process immediately.
More than 500 welding records memory available.
Intelligent welding by bar code scan for automatic welding, or manual set welding parameter
Good retroactivity, all welding parameter can be stored or download in a U disk
Parameter of Electric welding Machine
Model SPE315 SPE400 SPE500 SPE630
chine Parameter and main ability
Precision Voltage Control 0.5%
Precision Current Control 0.5%
stability 0.2%
load rate 95% 80%
Data Record Quantities 500
USB USB Reading & Writing Abilities
Scanner Scanner Ability
Printer Printing welding record abilities
Weight ≤ 10Kg ≤12Kgs ≤ 20Kg ≤ 34Kg
Working Time It can work 24 hours constantly
Working Model Constant Voltage, Constant Current
Dimension 42mmx23mmx39mm 42mmx23mmx39mm 45mmx25mmx42mm 48mmx28mmx45mm
Input Voltage Voltage AC220v ±20%
Frequency 50-60HZ Voltage AC380v ±20% or AC220v ±20%
Frequency 50-60HZ
Output Voltage Voltage 10~75V
Frequency 50-60HZ Voltage 10~75V
Frequency 50-60HZ Voltage 10~75V
Frequency 50-60HZ Voltage 10~210V
Frequency 50-60HZ
Output Current 55A 55A 65A 80A
Working Power 3.5KW 4.2KW 5KW 15KW
Protection Power Supply Over-voltage Protection and under-voltage Protection,suits all kinds of electrical grid working environment
Outpower short circuit,open circuit protection
Overheating Overheating Protection
IGBT Protection Using Importation IGBT chip,improving frequency of electricity power transition and stability prominently
Resistance Value identity It can detect the Resistance value of Resistance wire in electrofusion fittings interior, eliminate failure due to Resistance wire damage after welding process.
Environment Utility Environment -15~45ºC
There are many electric welding machine manufacturers, but we are one of the best choices for you.
If you need any kinds of pvc pipe welding, please contact us, as one of the most professional pipe welding machine manufacturers, Wuxi Plaswelding Machinery is willing to offer you high quality
products.
