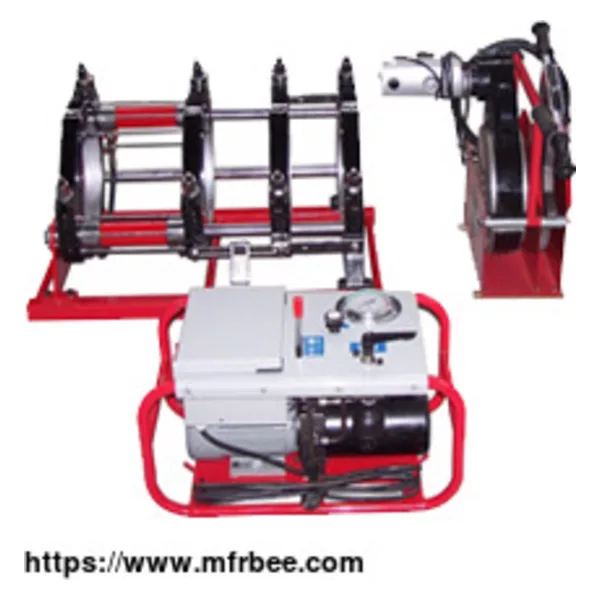

Hydraulic Butt Welding Machine
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- N/A
Specifications
Features of Hydraulic Butt Fusion Welding Machines
Removable PTFE coated heating plate with high accurate temperature control system;
Electrical planning tool;
Be made of lightweight and high strength material; simple structure, small and delicate, user friendly;
Low starting pressure ensures reliable welding quality of small pipes;
Changeable welding position enables to weld various fittings more easily;
High accurate and shockproof pressure meter indicates clearer readings;
Separate two-channel timer records time in soaking and cooling phases.
Plaswelding has its own plastic welding machine factory and is able to offer different types of reliable China butt welding machine. If you want to know more about the China automatic welding
machine, please contact us now!
Types of Hydraulic Welding Machine
LHY 160 Hydraulic Butt Welding Machine
LHY160 Hydraulic Butt Welding Machine is suitable for PE & PP pipes and fittings from 50mm to 160mm OD using low force welding methods.
LHY 250 Hydraulic Butt Welding Machine
LHY250 Hydraulic Butt Welding Machine is suitable for PE & PP pipes and fittings on the building site and in factory, with high quality aluminum casting without compromising strength.
LHY 315 Hydraulic Butt Welding Machine
LHY315 hydraulic butt welding machine is suitable for field construction sites, such as construction industry and sewage treatment enterprises.
LHY 450 Hydraulic Butt Welding Machine
LHY 450 Hydraulic Butt Welding Machine is suitable for HDPE & PP pipes and fittings, with high quality aluminum casting without compromising strength and performance.
LHY 630 Hydraulic Butt Welding Machine
LHY 630 Hydraulic Butt Welding Machines are suitable for PE & PP pipes and fittings on the building site and in factory, with high quality aluminum casting without compromising strength.
LHY 800 Hydraulic Butt Welding Machine
LHY 800 Hydraulic Butt Welding Machine For HDPE Pipe in manual or hydraulic operation, available size from dn630-800mm, high quality warranted with 5 years, durable service time.
LHY 1000 Hydraulic Butt Welding Machine
LHY 1000 Hydraulic Butt Welding Machines is suitable for HDPE & PP pipes and fittings, with high quality aluminum casting without compromising strength and performance.
LHY 1200 Hydraulic Butt Welding Machine
LHY1200 Hydraulically operated Butt-welding Machine, suitable for PE and PP pipes and fittings from 630 to 1200mm. This machine is the result of continuous participation in PE pipe industry for
many years.
LHY 1600 Hydraulic Butt Welding Machine
LHY1600 CNC controlled hydraulically operated butt-welding machine, suitable for HDPE & PP pipes and fittings from 1000 to 1600mm.
LHY 2000 Hydraulic Butt Welding Machine
LHY2000 hydraulically operated butt-welding machine suitable for PE and PP pipes and fittings from 1400mm to 2000mm. It has pressure, time and temperature PLC controlled, with on-board data logger.
LHY 2500 Hydraulic Butt Welding Machine
LHY 2500 CNC controlled hydraulically operated butt-welding machine, suitable for HDPE & PP pipes and fittings from 1600 to 2500mm.
FAQs of Hydraulic Butt Fusion Machine
Q.Why does not the hydraulic butt fusion welding machine pump motor work ?
A.
First of all, check to see if there are any problems in the following four places:
①Switch is the fault.
②Power source is not connected well.
③The socket inside the connection is loosened
④The machine is not grounded correctly
Please check the following items accordingly
① Check the switch
② Connect the power well
③ Check the connection
④ Check the earthing connection
Q.Why does the hydraulic welding machine cylinder leak ?
A.
Malfunction analyzes
① The oil ring is fault
② The cylinder or piston is damaged badly
Solutions
① Replace the oil ring
② Replace the cylinder
Q.Why does not the hydraulic butt fusion machine work?
A.
Malfunction analyzes
① The power cable is damaged
② Source power is abnormal
③ The ground fault switch is closed
Solutions
① Check the power cable
② Check the working power
③ Open the ground fault interrupter
If you need any kinds of pvc pipe welding, please contact us, as one of the most professional plastic pipe welding machine suppliers, Wuxi Plaswelding Machinery is willing to offer you high quality
products.
- Country: China (Mainland)
- Business Type:
- Market:
- Founded Year:2017
- Address:No.35, Shaotang Road, Outang Education Park, Wuxi
- Contact:plaswelding .com
