LHY 160 Hydraulic Butt Welding Machine
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- N/A
Specifications

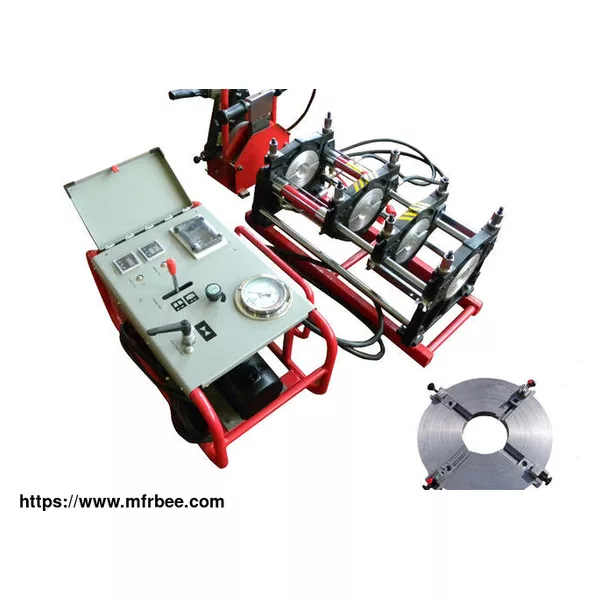

LHY 160 Hydraulic Butt Welding Machine
LHY fusion 160 welder is suitable for PE & PP pipes and fittings from 50mm to 160mm OD using low force welding methods. Excellent design and construction provide a premium machine on the worksite
and in the factory.
This fusion welders includes a mainframe with all diameter of layer clamps, stand for the heating plate, facing tool, and heating plate. This China butt welding machine for sale adopts high-quality
die-casting aluminum castings without affecting strength and performance. Welding can be carried out between clamps 3 and 4 for the tee, elbow, and manifold operations. CNC automatic control system
and data logger can also be selected.
Parameter of LHY 160 Fusion Welders For Sale
MODEL LHY160/50
Welding Range 50mm~160mm, PN4~PN20
Heating Plate Power 1.3KW
Facing tool power 0.8KW
Hydraulic unit power 0.75KW
Total power 2.1KW
Voltage/Frequency 1 phase 220Volts/240Volts, 50/60Hz
Total electric current 10.86A/220Volts; 11.43A/240Volts
N.W 127KGS
What is butt fusion machine
There are different types of fusion welders for sale to choose from, inlcuding manual butt fusion welding machine, hydraulic machines and automatic machines to meet your welding requirements, the
following is an overview:
Hydraulic machines varies depending on the welding range, total power, maximum pressure, size, and the functions and accessories that accompany each device. It is generally equipped with electric
milling cutters, toolboxes and accumulators. Automatic machines's gearbox can withstand extreme working conditions, the machine is designed for user-friendly and safer operation, and its interface
provides convenience for operators, thus reducing labor costs.
Tips for heating the fusion 160 welder and preparing the butt fusion pipe
1. Place a socket of the right size on the fusion welding machine for ppr pipe. Most PPR splicing tools come with a pair of Plug and socket of different sizes, and these sockets correspond to
common PPR pipe diameters. PPR tubes with a diameter of 50mm (2.0in) should correspond to sockets.
2. Heat the socket. Most butt fusion machine can be plugged into a standard 110V outlet. It may take several minutes to heat to the desired temperature and be very careful when using the thermal
fusion tool, which can lead to severe burns.
3. Trim the pipe to a certain length with a smooth, clean cut. When the fusion tool is heated, use a valid tool to mark and cut the butt fusion pipe to the desired length, and when used as
instructed, they will produce a smooth, uniform cut on the PPR.
4. Clean the PPR block with cloth and recommended detergent. Your fusion kit may recommend a specific cleaner for PPR piping, using it as directed outside the pipe and inside the fitting to be
connected, and you can connect the fusion welding machine manufacturer to get specific recommended detergent of fusion welders for sale.
5. Mark the welding depth at the connecting end of the fusion welding hdpe pipe. Your weld toolbox may come with a template to mark the appropriate weld depth on PPR pipes of different diameters,
and mark the pipe with a pencil.
6.Confirm that the fusion tool is fully heated. The target temperature is usually 260 °C (500 °F). You can determine whether it is ready by the temperature of the fusion welder display screen or by
an infrared thermometer.
If you need any kinds of china electric welding machine, please contact us, as a professional pipe cutting machine manufacturer, Wuxi Plaswelding Machinery is willing to offer you high quality
products.
