Teardrop Pallet Racking

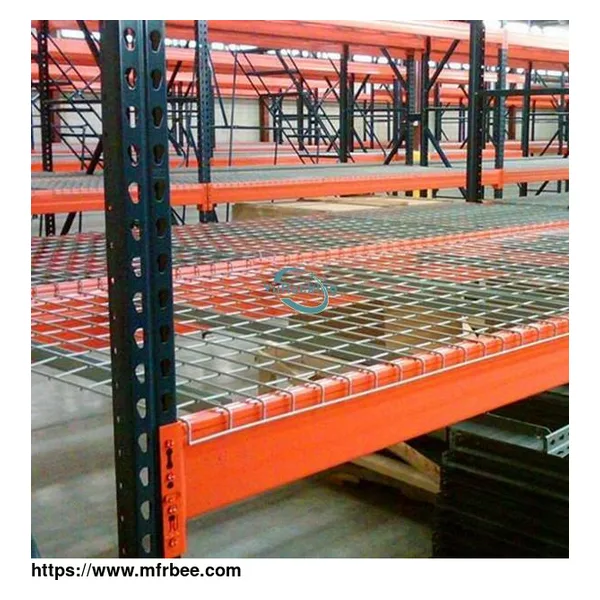

What is teardrop pallet racking? Teardrop Pallet Racking is commonly seen in North and South America market, The name, teardrop racking, comes from the perforated shape similar to water droplets. The teardrop pallet racking is mainly composed of teardrop uprights, teardrop pallet rack beams, horizontal brackets, diagonal brackets and foot pedals. Tear drop pallet rack is heavy duty pallet racking.

Different teardrop pallet racking for sale: YuRacking has various teardrop racking for sale. According to the different designs of warehouses, teardrop rack can be distributed in 100% Selective Teardrop Racking, Double Deep Teardrop Racking, Narrow Aisle Teardrop Racking, Drive in Teardrop Racking, Shuttle Teardrop Racking, Push Back Teardrop Pallet Racking, and so on.

Why choose to buy teardrop pallet racking?

Teardrop Pallet Racking is easy to assembly.

Teardrop metal shelving has stable structure, because the rivet connector claws locking up the teardrop pallet rack beams to the teardrop upright tightly.

The distance between the teardrop-shaped consecutive punches on the post is 2 inches. Therefore, the installation height of teardrop beam can be adjusted freely.

Contact Yuracking, your professional warehouse shelving supplier to make customized teardrop shelving solutions. We welcome your customization needs.

Teardrop Pallet Racking Features

Teardrop pallet racking can be adjusted flexibly per 2" (50.8mm);

Teardrop pallet racking is easy to assembe and install;

Teardrop pallet racking is widely used in the American and Canada warehouses, friendly to any cargos;

Whether assembled/bolted upright frame or welded upright frame, both arr available to teardrop pallet racking.

Teardrop Pallet Racking Specifications

Teardrop Pallet Racking Material Steel Q235

Teardrop Pallet Racking Size Range Length: 48" (1219.2mm)/ 96"(2438.4mm)/ 108"(2743.2mm)/ 144"(3657.6mm)

Width: 46" (1168.4mm) / 48" (1219.2mm)

Height: 7'(2133.6mm)-38' (11582.4mm)

Teardrop Pallet Racking Thickness Range 1.5mm-3.0mm

Teardrop Pallet Racking Load Capacity 2000lbs-8600lbs/level

Teardrop Pallet Racking Benefits Anti-rust, Corrosion-protection

Teardrop Pallet Racking Structure Assembly or Welded

Teardrop Pallet Racking Sample/OEM/ODM Available

Teardrop Pallet Racking Components Post: pallet size: L=upright height*W1.1m*H1.1m-1.2m (GP/HQ container, total weight is below 2.5T/pallet)

Bracer: pallet size: L=bracer length*W1.1m*H1.1m

Beam: pallet size: L=beam length*W1.1m*H1.1m-1.25m (GP/HQ container)

Wie Decking: Length*Width*H2.2m 90pcs/GP container;

Length*Width*H2.2m 100pcs/HQ container.

Delivery Time 15 days after deposit

Why Teardrop Pallet Racking Is So Popular In America And Canada And What's The Different Between Teardrop Pallet Racking And Other Pallet Racking?

Different Teardrop Pallet Racking Standards

In the United States and Canada, almost all teardrop pallet rack system holes are universal, which means all accessories can be used in common. Standard teardrop pallet racking greatly saves time for customers to choose or compare,and facilitates the purchase of teardrop pallet racking accessories. For other countries and regions, there are many teardrop racking companies, and different teardrop racking companies have different teardrop racking hole patterns, which may be not easy to be matched.

Different Teardrop Pallet Racking Structures

In the United States, overall welding of teardrop upright is widely used. This means the teardrop pallet rack system cannot be disassembled, so the transportation volume is large, and transportation costs are higher. But on the other hand, the teardrop upright does not need to be assembled on site, which also saves a lot of labor costs.

In terms of teardrop upright design, the American market values more on the practicability of the teardrop pallet racking and less on the aesthetics. When the teardrop upright needs to load relatively large cargos, some American warehouse designers will weld an extra upright or rectangular tube of 2 to 3 meters at the bottom to strength the bearing capacity. For other countries and regions, this method is not acceptable to all customers, because it is bad-looking. Some customers want the whole teardrop uprights to be consistent up and down, which will result in a waste of steel materials. The top of the teardrop pallet racking system does not need such a large section, because the bearing load of the top teardrop upright is very small.

As a professional warehouse racking and shelving supplier, Yuracking can either weld or assemble teardrop uprights according to your different needs.

Different Teardrop Pallet Racking Surface Treatment

For example, in China, almost all teardrop metal shelving surfaces are electrostatically sprayed, while in the United States, the baking paint is widely used on the surface of teardrop racking.

Teardrop Pallet Racking Weight Capacity

Size (L X H)(") Size (L X H X T)(mm) Loading(lbs) Loading(kg) Color(ral)

48" x 3.0" 1219*76.2*1.5 7100 3216 RAL 2004

60" x 3.0" 1524*76.2*1.5 4169 1889 RAL 2004

72" x 3.0" 1828.8*76.2*1.5 3150 1427 RAL 2004

84" x 3.0" 2133.6*76.2*1.5 2751 1246 RAL 2004

96" x 3.0" 2438.4*76.2*1.5 2008 910 RAL 2004

96" x 4.0" 2438.4*101.6*1.5 4062 1840 RAL 2004

96" x 4.5" 2438.4*114.3*1.8 6187 2800 RAL 2004

96" x 5.0" 2438.4*127*1.8 8556 3875 RAL 2004

108" x 4.0" 2743.2*101.6*1.8 3851 1744 RAL 2004

108" x 5.0" 2743.2*127*1.8 6760 3060 RAL 2004

120" x 5.0" 3048*127*1.8 5476 2480 RAL 2004

144" x 5.0" 3657.6*127*1.8 3803 1720 RAL 2004

144" x 6.0" 3657.6*152.4*2.0 6375 2887 RAL 2004

Teardrop Pallet Racking Upright Loading Weight Capacity

Beam Space 3"x3" 3.54"x2.75" 4"x3"

Inches mm lbs kg lbs kg lbs kg

36" 914 19800 8981 22000 9979 26620 12075

42" 1,066 19360 8782 21560 9780 26180 11875

48" 1,219 18920 8582 21120 9580 25520 11576

54" 1,373 18480 8382 20680 9380 25080 11376

60" 1,524 18040 8183 20240 9181 24420 11077

66" 1,676 17600 7983 19800 8981 23980 10877

72" 1,828 17380 7883 19360 8782 23540 10678

78" 1,981 16720 7584 18700 8482 22660 10278

84" 2,134 16060 7285 17820 8083 21560 9780

90" 2,286 14960 6786 16720 7584 20240 9180
