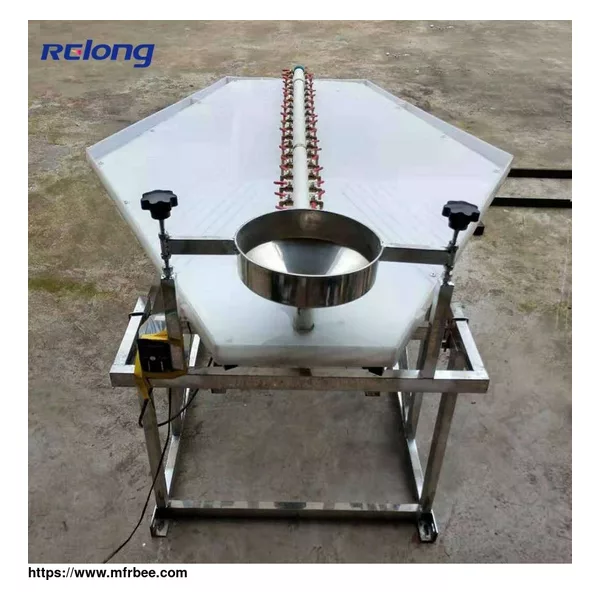

Relong Shaking Table Shaker Table Gold Concentrate Equipment

The New Shaking Table is known to generate a bullion grade gold product from low-grade concentrates at high recoveries. An unique table design allows for the production of a gold concentrate that can be directly smelted to bullion.

Features:

* Direct, fixed speed feed system

* The table can be operated in batch or continuous mode

* No massive foundation required

* Simple operation

* Adjustable feed rate

* Recessed deck grooves for gold collection

* Multiple dressing water cock valves for wash water control

* Central water manifold constructed for resistance to attack by contaminated process water
* Smaller packing size than the common one.

Shaking Table RL-SK02
No.	Title	Spec.
1	Overall length	240cm
Overall width	160cm
Overall height	80cm
2	Weight	150kg
3	Table Material	PP
4	Frame Material	Stainless Steel
6	Guide Rail	THK
	Bearing	Nachi
8	Motor Power	0.4KW/220V
9	Water Consumption	8 CBM per hour
10	Material Processing Capacity	200KG/H
11	Recovery Rate	99.50%
