I. Introduction
Model name: DC-RCM

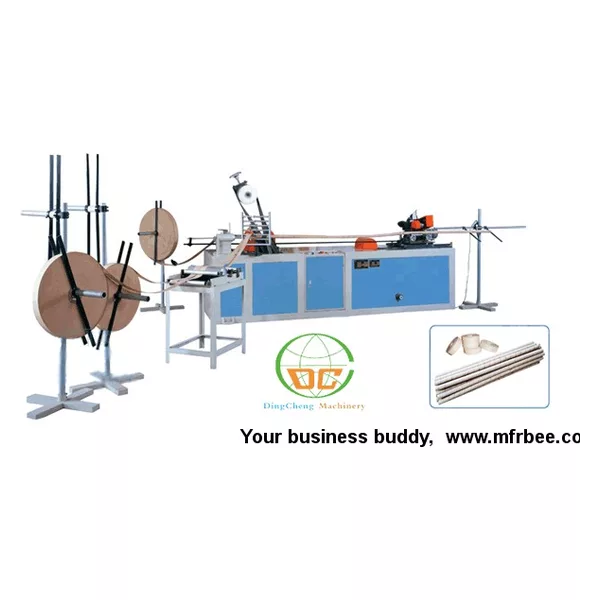

This machine is used to produce roll cores for toilet paper rolls and kitchen towel rolls as the picture shown above.
II. Function and Features
1. This machine is t to produce punched and perforated paper core, which is advanced in design and convenient in
operation.
2. Automatically withdraw knife or insert knife to cut pipe without stopping machine.
3. The molding of products is hard and straight.
4. The composed parts are of high rigidity, equipment is stable without shaking when rolling core.
III. Technical Parameter
1. Production Speed: 10~20 m/min
2. Specification of Roll Core:Inner hole diameter of roll core:42mm(3Ply), length 1.2~1.96
m
3. Specification of Jumbo Roll: 300~400 g/㎡ width 72 mm
Machine Power: 4.5Kw (380V 50Hz) (For your reference, it depends on the power situation in your place)
4. Overall Size of Equipment (L×W×H m):3.0×0.8×1.6 m
5. Weight of Equipment: 1.5T
IV. Export Details
1. Delivery time: 15 days (It takes time to ensure the processing precision, assembling precision, etc. Of course, the delivery time can be discussed as the case may
be.)
2. Load port: Xiamen port in Fujian Province
3. Packing: In standard export wooden cases
4. Container: 1 x 20 feet container (It depends on the quantity of the machines you buy ).
5. Machine installation and operation training: The seller should dispatch professional technicians and engineers to buyer’s plant to install the machine and train the workers. The
round air ticket, accommodation and salary should be paid by buyer.
6. Warranty period: One year(Except easy damaged parts), and will provide long term services including providing spare parts at low price and will heart and soul help the buyer to
solve any problem may occur.
7. Our company also provides the raw material to match with the machine.
