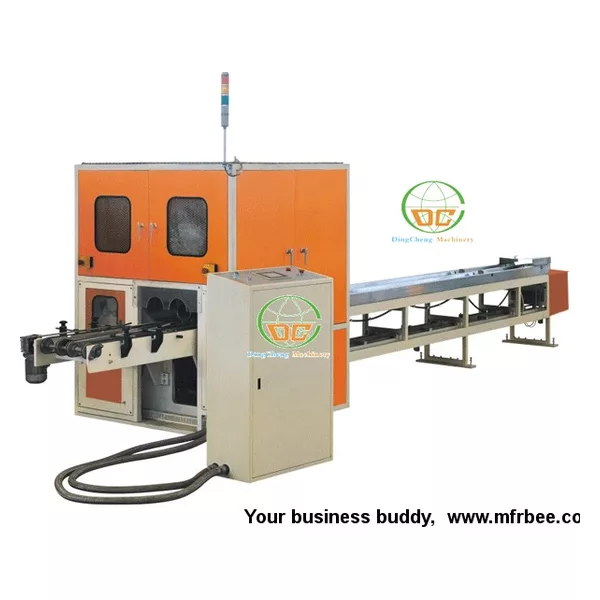

Automatic Log Saw Cutting Machine (DC-LSCM-II)
Product Quick Detail
- Place Of Origin
- China(mainland)
- Packaging
- according to the quantity you order
- Delivery
- 35-65 Days
Specifications
I. Introduction
Model name: DC-LSM-II
This machine is used to cut long toilet paper rolls and kitchen towel rolls into short rolls as the picture shown above. It is automatic type.
II. Function and Features
1. This machine is used to cut toilet paper and kitchen roll paper. It is easy to operate and runs at high speed
2. Adopt computer control production, reset automatically, cut, and wrap length, adjustable the period of cutting.
3. Equipped with touch screen person-to-computer control, production parameter, production trouble can be shown on the screen.
4. 610 mm diameter disc knife high speed revolving rapidly. (Cut two roll paper at one time).Without knife mark and rough edges while
cutting.
5. Equipped with advanced photoelectric checking system, advanced servo driving system, pneumatic element, bearing tool and other
advanced products.
Equipped with feeding knife grinder, the grinding of knife blade is of high precision. It is safe and insures while grind the knife.
III. Technical Parameters
1. Paper Roll Length: 1200~2500mm (it is according to customers’ requirement)
2. Diameter of paper roll: φ90~φ130mm (the size could be depend on customers’ requirement)
3. Production speed: times of cut 80~100 times/min ×2 roll/time
4. Power 10kw (380v 50Hz) (For your reference, it depends on the power situation in your place)
5. Overall size: 7.0m×1.5m×2.3m (L×W×H)
6. Weight: about 3 tons
IV. Export Details
1. Delivery time: 25 days (It takes time to ensure the processing precision, assembling precision, etc. Of course, the delivery time can be discussed as the case may
be.)
2. Load port: Xiamen port in Fujian Province
3. Packing: In standard export wooden cases
4. Container: 1 x 20 feet container (It depends on the quantity of the machines you buy ).
5. Machine installation and operation training: The seller should dispatch professional technicians and engineers to buyer’s plant to install the machine and train the workers. The
round air ticket, accommodation and salary should be paid by buyer.
6. Warranty period: One year(Except easy damaged parts), and will provide long term services including providing spare parts at low price and will heart and soul help the buyer to
solve any problem may occur.
7. Our company also provides the raw material to match with the machine.
- Country: China (Mainland)
- Business Type: Trading Company
- Market:Africa,Middle East
- Founded Year:2000
- Address:8-17 Dongpu Road,Siming Area,Xiamen,Fujian,China
- Contact:Amy Zeng
