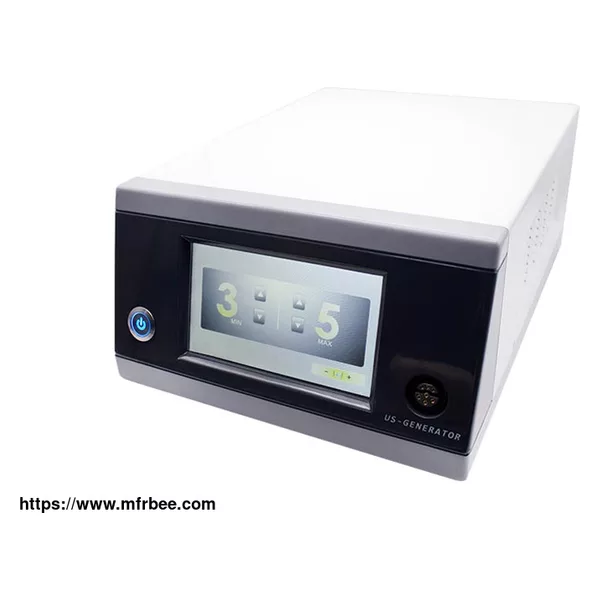

BBT Ultrasonic Generator

As a one of the most professional ultrasonic generator suppliers, BBT ultrasonic frequency generator 55.5Khz provides an excitation signal and a high-frequency AC power source to drive the medical ultrasonic transducer. It offers 3~5 level power adjustment to meet different clinical requirements such as dissection and coagulation. It is compatible with 55.5 kHz ultrasonic generators on the market.

Specification Of BBT Ultrasonic Generator

Name specification

Net weight 6.3kg

Size 42cm*30cm*16.5cm

Working frequency 55.5kHz±2kHz

Packing box 58cmx50cmx24cm

MAX ultrasonic power <80W

How Does Power Ultrasonic Generator Work

As one of the most professional ultrasonic generator manufacturers, BBT Medical ultrasonic power generator is an ultrasonic surgery energy platform with pure single ultrasonic energy. By converting electric energy into mechanical energy, the high-frequency vibration is transferred to the ultrasonic cutter knife head through the axial direction of the knife bar. Combined with the pressure of the jaw, collagen and fibrin in human tissues will dissolve and denaturation. These walls fuse together to form a zona pellucida, creating a permanent closure.

Ultrasonic Generators Advantages

1. The panel is equipped with an output intensity bar device, and a unique frequency and output intensity alternate digital display device is optional;

2. Equipped with an adjustable frequency sweep function to continuously change the sound field distribution in the cleaning tank, BBT Ultrasonic Generator can avoid the production of linear cavitation etching lines on the surface of the workpiece, and also makes the dirt on the surface of the workpiece fall off quickly to improve the cleaning effect;

3. BBT is one of the top power ultrasonic generator suppliers, whose ultrasonic frequency generator is equipped with power adjustment function, using advanced power adjustment circuit to achieve stepless and smooth adjustment of ultrasonic power, overcoming many shortcomings brought by the traditional method of indirect adjustment of power by adjusting frequency;

4. It has the unique anti-co-shock function in China, which overcomes the defects of traditional generators that are easy to produce lines on the surface of the workpiece and damage the workpiece, and it also avoids the shortcomings of breaking the tank due to cavitation;

5. With the original dirt repelling function, the dirt can be quickly separated from the workpiece and float on the surface, which is suitable for cleaning by overflow circulation.

6. With overheating protection function, it can protect the generator from damage.

Ultrasonic Generator Functions

1. Frequency tuning function

The ultrasonic generator has the function of fine-tuning the frequency, with an adjustment range of 2%. Under different working conditions, slight adjustments can make the transducer always work in the best state, and the energy conversion efficiency can reach the maximum, and it can reach the maximum under different working conditions. Good results.

2. Frequency sweep function

The bbt surgery ultrasonic generator has a frequency sweep function. During the cleaning process, the ultrasonic frequency is swept back and forth within a reasonable range to drive the cleaning liquid to form a fine backflow, so that the dirt on the workpiece is quickly removed from the surface of the workpiece while being ultrasonically peeled, and the cleaning efficiency is improved.

3. Power adjustment function

The ultrasonic frequency generator has the function of power adjustment, and the output power can be adjusted continuously from 10% to 100% to meet the requirements of various cleaning objects.
