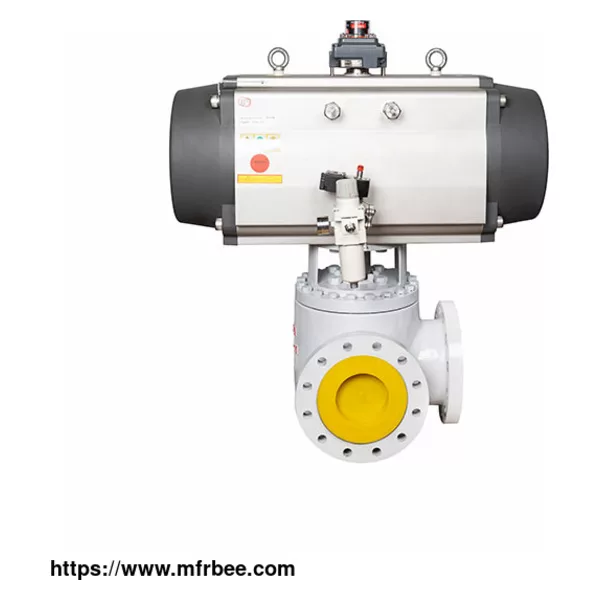

3 Way Control Valve

T220/T260 Series

China 3 Way Control Valve

As one of the best 3 way control valve manufacturers in China, our 3 way control valve factory provides high quality three way control valve at good wholesale prices. This 3 way automatic control valve adopts double spool up and down guide structure, equipped with pneumatic actuator, the valve body is a control valve 3 way structure, that is, one inlet and two outlets (split type), two inlets and one outlet (combined type), so as to achieve fluid mixing heating or cooling, or fluid diversion of varying amounts to meet the different types of control valves sizing standard and requirement of different industries and mines. Contact our 3 way control valve supplier for more information now!

3 Way Automatic Control Valve Technical Data Sheet

Dimensions of the valves

T220 Unit: mm

Normal Diameter TL TD TH

ANSI ANSI ANSI ANSI Fl F2 F3 F4

150 300 150 300

1" 184 197 92 98 114 170 170 228

11/2" 222 235 111 117 105 167 167 233

2" 254 267 127 133 105 167 167 233

3" 298 318 149 159 156 248 248 365

4" 352 368 176 184 181 267 267 389

6" 451 473 225 236 260 355 355 575

8" 543 568 271 289 295 410 410 605

10" 673 708 336 354 360 510 510 850

12" 737 775 368 387 395 545 545 850

14" 889 927 445 463 465 615 615 880

16" 1016 1057 508 529 520 670 670 960

T260

Normal Diameter TL TD TH

ANSI 600 ANSI 600 Fl F2 F3 F4

1" 216 108 135 170 170 *

11/2" 241 121 160 240 240 On request

2" 292 146 190 270 270

3" 356 178 250 315 315

4" 432 216 275 355 355

6" 559 279 335 490 490

8" 660 330 410 480 480

10n 787 394 * * *

12H 838 419 * *

For more other specifications request please contact with Utmost.
