X1-H4 Pipe Periscope

Place Of Origin: China

Minimum Order: 15

Packaging: wooden case/carton case

Delivery: 10 Days

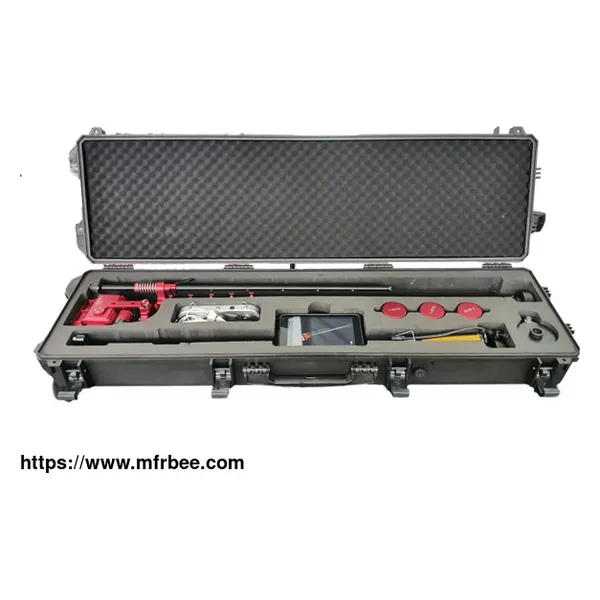

X1-H4 pipeline periscope is mainly used for rapid detection and diagnosis of the internal conditions of industrial vessels or pipelines. Put the pole inspection camera probe with its own searchlight light source into the pipe mouth or the inside of the industrial container through the operating lever. The digital high-definition camera is used with the focus and zoom and pitch adjustment functions to clearly display the structural defects and functionality of the pipe and the container. Defects will be recorded and saved, and the inspection information will be filled in on-site and taken screenshots for interpretation.

X1-H4 Pipe Periscope Main Parts

Suitable for pipe DN100-2000;

Working Temperature：-20℃~50℃;

Image sensor：Color 1/2.8 Progressive scanning CMOS

Image resolution：PAL. 1920*1080，2.1 megapixel

Rotation angle：up 35°，down 25°

Zoom：30x optical，manual or auto focusing;

luminous sensitivity (minimum illumination): 0.01LX

Waterproof: IP68;

Distance-measuring precision: ±0.001mm

Distance-measuring range: 0.2m~80m;

Telescopic pole length: standard 8.8m, can customize up to 25m

Main control: Windows or Android tablet, or Android phone can be used

Lighting: can move along with camera probe.With main and auxiliary lighting. Main lighting is with2X 10W LED. There are 8X3W LED as auxiliary lighting. Effective irradiation distance is 40-80 meters;

If you want to know more details of telescopic pole camera inspection system, please contact us.

Now the price of manhole scanner is affordable, if you have needs, please contact us.

More types of pipe inspection system, please visit our website.
