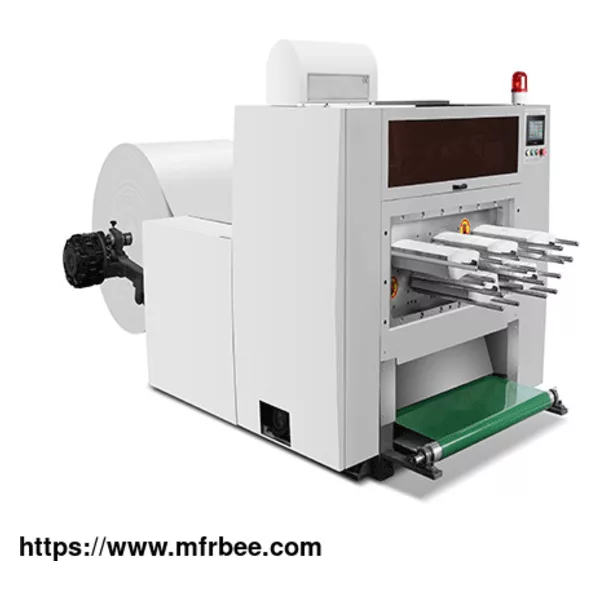

High Speed Paper Cup Fan Punching Machine
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
It is suitable for multi-colour printing of roller paper, tinted with high precision, and high speed cutting and stripping at the same time. It is good equipment for printing and cutting
application to paper cups, paper bowls, paper plates and other paper products.
Specification of High-Speed Paper Cup Printing and Punching Machine
Model FD-YC-650x400 FD-YC-850x450 FD-YC-1000x450 FD-YC-1200x45
Cutting precision mm ±0.20 ±0.20 ±0.20 ±0.20
Cutting speed times/m 280-320 280-320 280-320 250-300
The thickness of the paper range g 150g-350g 150g-350g 150g-350g 150g-350g
Max. roller diameter mm 1500 1500 1500 1500
Max. Paper feeding mm 650 850 1000 1200
Air consumption m²/min 0.2 0.2 0.2 0.2
Total power kw 30 30 30 32
Machine weight T 3.0 3.5 4.0 4.5
Overall dimensions m 5.5x1.5x1.8 5.5x17x1.8 5.5x1.8x1.8 5.5x2.2x1.8
Now the paper cup punching machine price is affordable, if you have needs, please contact us.
As a packaging machinery factory, we can offer kinds of related products for sale, if you are interested, please leave us a message.
