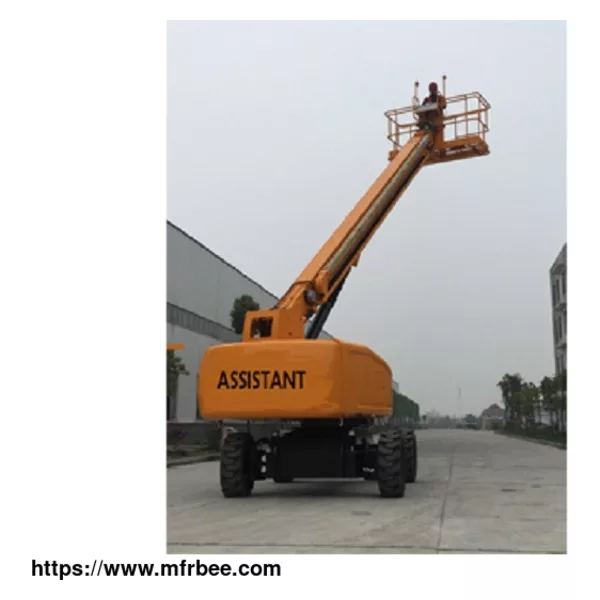

Telescopic Man lift 20-22M

Minimum Order
1
Packaging
N/A
Delivery
15 Days
We are professional Telescopic Manlift 20-22M supplier and factory in China. We can produce the product according to your requirements.

Telescopic Man Lifter Truck 20-22M Measurements & Specifications
MODEL GTBZ20 GTBZ22
MEASUREMENTS Metric US Metric US
Working height maximum * 22.4m 73ft 23.9m 78ft
Platform height maximum 20.7m 68ft 22.2m 73ft
Horizontal reach maximum ** 19.1m 63ft 20.2m 66ft
Below ground reach 1.76m 5ft9in 2.93m 9ft7in
A Platform length-8ft model 0.91m 3ft 0.91m 3ft
Platform length-6ft model 0.76m 2ft 0.76m 2ft
B Platform width-8ft model 2.44m 8ft 2.44m 8ft
Platform width -6ft model 1.83m 6ft 1.83m 6ft
C Height-stowed 2.7m 9ft 2.7m 9ft
D Length-stowed 9.59m 31ft 10.69m 35ft
E Width 2.49m 8ft 2.49m 8ft
F Wheelbase 2.5m 8ft 2.5m 8ft
G Ground clearance-center 0.43m 1ft5in 0.43m 1ft5in
PRODUCTIVITY
Lift capacity (restricted) 480kg 1056lbs 480kg 1056lbs
Lift capacity (non-restricted) 340kg 748lbs 250kg 551lbs
Platform rotation 160° 160°
Jib rotation -- 135°
Turntable Swing 360°continuous 360°continuous
Turntable tail swing 1.19m 4ft 1.19m 4ft
Travel speed -stowed 6.3km/h 3.9mph 6.3km/h 3.9mph
Travel speed -raised or extended 1.3km/h 0.8mph 1.3km/h 0.8mph
Gradeability -stowed (2WD) 30% 30%
Gradeability -stowed (4WD) 45% 45%
Turning radius - inside 3.0m 9ft7in 3.0m 9ft7in
Turning radius –outside Turning radius - axle extended outside 5.2m 16ft8in 5.2m 16ft8in
Controls 24V DC Proportional 24V DC Proportional
Solid tires 9.00-20 9.00-20
POWER
Power source Lovol 1004-4 78 hp (58kw) Perkins 400 61hp (45.5kw) Cummins B3.3NA-C60 4 60HP (45kw)
Auxiliary power unit 24V DC 24V DC
Hydraulic tank capacity 190L 190L
Fuel tank capacity 150L 150L
WEIGHT
2WD 13000kg 28660lbs 13140kg 28968lbs
4WD 13080kg 28836lbs 13220kg 29145lbs
STANDARDS COMPLIANCE EN280, JG/T5101, Q/ADZV001-2008

Now the price of pallet stacker forklift is affordable, if you have needs, please leave us a message.
