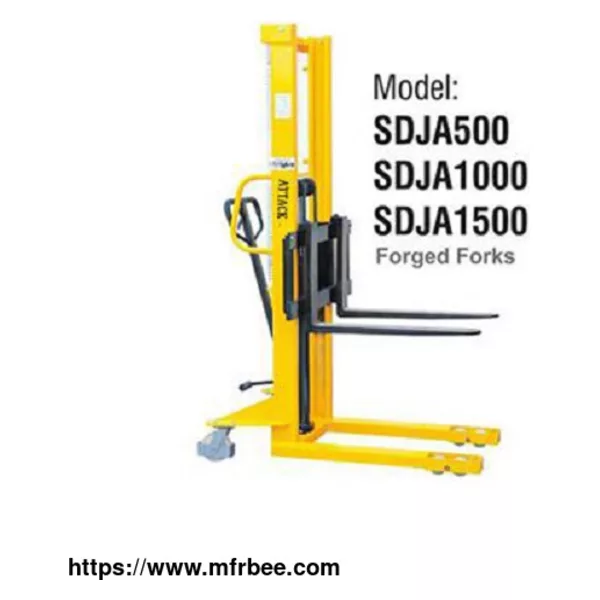

CTY manual pallet stacker is kind of high-quality manual stacker pallet truck, max load capacity is 3000kg, and the max lifting height is 1600mm. We are professional Manual Stacker
SDJA1000-SDJA1500 supplier and factory in China. As one of electric stacker suppliers, we can produce the product according to your requirements.
This series manual pallet stacker forklift has the following features:
Easy maneuverability and secure braking
Economic and mobile work aid
Compact and space sving storage
Optional tiller pumping lifting and foot pedal lifting.
Parameters
Model SDJA1000 SDJA1500
Load capacity/rated load Q(kg) 1000 1500
Load centre distance c(mm) 400/500 400/500
Fork height,lowered h13(mm) 90 90
Height, mast lowered h1(mm) 2085/1840 2090
Max. lift height h3(mm) 1600/2500 1600
Height, mast extended h4(mm) 2165/2925 2150
Overall length l1(mm) 1380/1640 1380/1640
Overall width b1(mm) 1000 1000
Fork dimensions s/e/l(mm) 30/100/800(1060) 30/100/800(1060)
Distance between fork-arms b5(mm) 950/700 950
Round clearance, laden,below mast m1(mm) 25 25
Aisle width for pallets 1000×1200 crossways Ast(mm) 1580/1840 1580/1840
Aisle width for pallets 800×1200 lengthways Ast(mm) 1625/1891 1625/1891
Turning radius Wa(mm) 1235 1235
Lift speed,laden/unladen mm/time 25 25
Lowering speed,laden/unladen mm/time Manual control
Service weight kg 250/316 255
