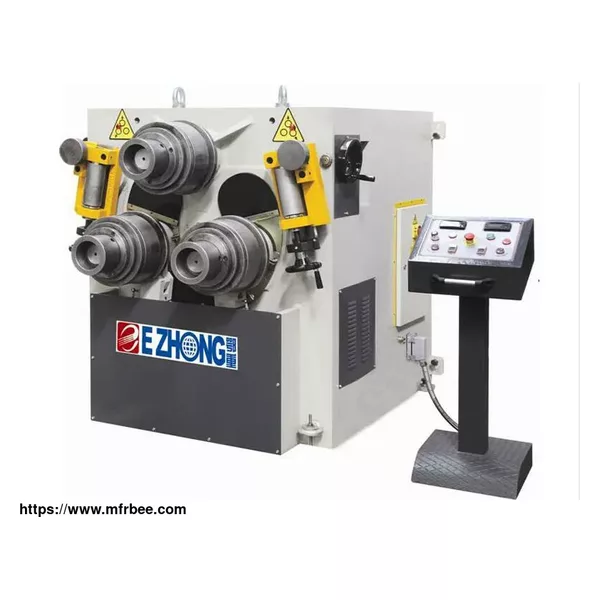

Profile Bending Machine

The profile bending machine is special high-efficiency processing equipment for the bending of various profiles such as angle steel, channel steel, I-shaped copper, flat surface, square tube, round tube, etc. The CNC profile bending machine can complete the end pre-bending and coiling of various profiles He-shaped and hu-shaped workpieces are widely used in aerospace, petrochemical, hydropower, shipbuilding, automobile manufacturing, machinery manufacturing, steel structure construction and other industries. Overview of the structure of the profile bending machine for sale. This CNC profile bending machine is an arc downward adjustment structure, the upper roller shaft is fixed, and the two lower spokes respectively make 35 lines of lifting movement around a central shaft relative to the upper spoke shaft. Its function is mainly to pre-bend the end of the profile and the bending profile is bent and deformed, and at the same time, the two lower spokes are also the main driving shafts, which are driven by a hydraulic motor, so that the bent and deformed profile is rolled into shape. In order to prevent the deformation of the profile during the bending process and improve the bending accuracy of the profile, two rollers and rollers are added, which can move up and down vertically to adapt to the profile of different specifications and different bending radii.

The 180-profile plate bending machine is a downward-adjustable three-spoke bending machine. The bed is a steel plate structure and is treated to eliminate internal stress. The transmission of the main report is transmitted to the power through the hydraulic system through the hydraulic motor, gears, and sprocket for rotating motion. . The two side rollers move in an arc around the central axis. The power transmitted by the hydraulic motor and gears through the hydraulic profile bending machine system and the main stop rotate at the same time. The support rollers are installed on the side caps so that the support report and the side spokes do at the same time. Arc movement to ensure the precision of the rolled profile. According to the requirements of the site and profile, it can be installed vertically or horizontally.

The CNC profile bending machine produced by ezhong, a profile bending machine factory, is a kind of special high-efficiency metal fabrication equipment for bending angle steel, channel steel, I-shaped steel, flat steel, square steel, round copper and other special-shaped steel. Round process. This bending machine is advanced in structure, reliable in work, small in size and complete in functions. It is currently the most advanced profile forming equipment domestic and overseas. EZHONG is a professional profile bending machine manufacturer, and we have high quality profile bending machines for sale, welcome to contact us for profile bending machine price.

CNC Profile Bending Machine Specification

Bending Angle of copper 80X10

Φ800 100X12

Φ1000 120X12

Φ1250 150X16

Φ1000 160X20

Φ1600 200X20

Φ3000 200X28

Φ2000 200X281

Φ1800 200X281

Φ1800

The inside of Angle steel 80X10

Φ1000 100X10

Φ1000 100X12

Φ1250 130X15

Φ1200 150X20

Φ1600 180X16

Φ3000 200X20

Φ2000 200X281

Φ2000 200X281

Φ2000

T beam 80X9

Φ700 100X12

Φ800 120X13

Φ1250 150X15

Φ1200 160X20 Φ1400 200X20

Φ1600 200X28

Φ1800 200X281

Φ1600 200X281

Φ1600

T-shaped steel bend 80X9

Φ1300 100X12

Φ1500 100X12

Φ1500 130X15

Φ1700 150X20

Φ2000 180X18

Φ2500 200X20

Φ2800 200X281

Φ2500 200X281

Φ2500

Flat steel bending 80X18

Φ800 100X25

Φ700 120X25

Φ1000 150X30

Φ1000 175X40

Φ1200 200X50

Φ2000 250X50

Φ1800 250X70

Φ1800 300X70

Φ2800

Flat steel bending 180X20

Φ500 200X35

Φ600 250 X30

Φ1000 250X40

Φ1000 350X50

Φ900 400X60

Φ2000 450 X70

Φ1000 500X80

Φ1200 500X100

Φ1600

Square steel 50X50

Φ500 60X60

Φ600 70X70

Φ800 90X90

Φ1200 110X110

Φ1500 130X130

Φ1800 145X145

Φ2000 165X165

Φ2200 200X200

Φ2500

Round steel Φ60

Φ600 Φ70

Φ700 Φ80

Φ800 Φ100

Φ1000 Φ125

Φ1200 Φ150

Φ1500 Φ170

Φ1700 Φ190

Φ1900 Φ220

Φ2200

Round tube Φ76

Φ700 Φ100

Φ1100 Φ142

Φ1800 Φ170

Φ2000 Φ190

Φ2500 Φ220

Φ3000 Φ300

Φ4000 Φ330

Φ5000 Φ400

Φ6500

Square tube 65 X 62) 90X 52) 100X6.52) 120 X 82) 150 X 82) 180X102) 200X132) 250X132) 300X132)

I-shaped copper — 100

Φ800 120

Φ900 160

Φ1100 200

Φ1500 240

Φ2000 280

Φ2000 320

Φ2200 500

Φ3000

Channel Steel Outward Bending 140X603) 0600 160X653) *800 200 X 753) *900 300X1003) 01100 3603 )

01200 4503) *2000 5003) *2000 5503) *2200 6003) 01500

Channel steel bend 140X603)

Φ800 160X653)

Φ1000 200 X 753)

Φ1000 300X1003)

Φ1100 3603)

Φ1400 4503)

Φ3000 5003)

Φ2000 5503)

Φ2200 6003)

Φ1500

H-shaped steel — — — 120

Φ3500 180

Φ4500 200

Φ9000 220

Φ9600 240

Φ11000 320

Φ32000

— — — 120

Φ2800 160

Φ3200 180

Φ4600 200

Φ5200 220

Φ5600 300

Φ9600

Interface module 18-25 30-40 45-50 95-110 180-320 300-600 400-700 600-1000 900-1500

Motor power 5.1/5.5 11 11 15 30 37 64 67 67

EZHONG CNC Profile Bending Machine Details

- It is an arc downward adjustment type three-spoke profile bending machine, which can complete the functions of rounding, arcing, and rounding of various profiles at one time. (Note: When the precision of the rolled profile is high, a special mold must be prepared. If the accuracy is appropriately relaxed, a general mold can be used to complete the rolling.)

- The body of CNC profile bending machine adopts steel welded parts, all of which have undergone annealing and other heat treatment processes. It is a closed frame structure. The position of the upper roller is fixed. The two lower rollers can move in an arc around the fixed center of rotation. All three rollers are active rollers. Its power is provided by a hydraulic motor, which can be rotated in both forward and reverse directions; the lifting of the two lower rollers is hydraulically driven, which is stable in transmission, safe and reliable; the supporting roller devices on both sides of the upper roller are beneficial to control the rolling accuracy of the profile. The two lower rollers are equipped with display devices.

- Three-roller full drive system, the upper and lower working rolls of the hydraulic profile bending machine are all active caps. In this way, the "cancellation" phenomenon that may occur during the rolling process can be avoided. The linear speed of the upper and lower working spokes is automatically matched by the hydraulic system during the rolling process. The rotary motion of the profile bending machine is equipped with a braking device to ensure accurate positioning during the work rolling. The device runs smoothly, and the rolling is flexible and reliable.

- The main function of the hydraulic system is to drive the rotation movement of the upper and lower rollers, the lifting movement on both sides, and the tracking of the supporting rollers. The entire hydraulic system has a reasonable design, reliable work, and is equipped with high-precision oil suction and return filters to ensure the cleanliness of the system oil. The cylinder valve group and hydraulic pipeline adopt quick-fit joints used in metallurgical mines and have reliable radial seals to ensure that the entire hydraulic system has no leakage. The main valve groups in the hydraulic system are all high-quality products from Northern Taiwan Precision Machinery. The pumps, oil filters, motors, and seals are all made by domestic famous brand manufacturers with stable performance and reliable quality. All hydraulic components are tested and screened before entering the factory of ezhong profile bending machine manufacturer to eliminate hidden troubles in advance.

Options Of Profile Bending Machine for Sale

■Steel structure bed and eliminate stress.

■Special hardened and ground shaft.

■Mobile console.

■Bidirectional hydraulic side guide shaft.

■Two-speed working system.

■Standard 3+3 manual side support.

■Specially designed box conversion type profile bending machine for sale, the upper shaft can move up and down, and the two lower shafts can move left and right.

■Pressure adjustment for thin and high-precision materials.

■Infinitely variable speed adjustment.

■Various types of pipes, profile molds and HEB, IPN and UPN beam accessories are available according to customer needs.

EZHONG Profile Bending Machine Safe Operation Notes

1. First, fix the upper mold of cnc profile bending machine so that the center of gravity of the mold and the center of the pressure head is in a straight line; the planes of the upper and lower molds must be in close fit with uniform clearance and check that the upper mold has sufficient stroke.

2. Start the profile bending machine, test the pressure, and check whether there is any abnormality and whether the lubrication is good. For hydraulic profile bending machine workpieces that are difficult to remove from the mold, add some lubricant or lubricating oil appropriately to reduce friction so that it is easy to demold.

3. Before the formal profile bending, you must check whether the number and size of the workpiece are consistent with the drawing and whether the blank has burrs that affect the pressing quality. For large batches of workpieces, a stopper capable of adjusting the positioning must be installed, and the position of the stopper should be adjusted in time if the deviation is found.

4. It is forbidden to pick and place the workpiece directly on the mold of the profile bending machine by hand. For larger workpieces, they can be picked and placed outside the mold. For workpieces smaller than the mold, other tools should be used to pick and place them.

The Advantages Of Profile Bending Machine

The -3 axis is driven by a hydraulic motor and a planetary reducer

Steel structure bed and eliminate stress

Special hardened and ground shaft

Standard hardened mold (flat steel, angle steel, square steel, etc. can be bent)

Mobile console

Horizontal and vertical working methods

Digital display (3 groups)

Bidirectional hydraulic side guide shaft

Two-speed working system

Standard 3+3 manual side support

Specially designed box conversion type machine, the upper shaft can move up and down, and the two lower shafts can move left and right

Pressure adjustment for thin and high-precision materials

Optional

Infinitely variable speed adjustment

-3+3 hydraulic support

CNC automatic control

Various types of pipes, profile molds and HEB, IPN and UPN beam accessories are available according to customer needs

Using integral steel plate welding, thick and beautiful, good stability

The profile bending machine is manufactured in accordance with EC safety standards and has CE certification

The Application Of Profile Bending Machine

EZHONG CNC profile bending machine for sale can complete the pre-bending, rolling and rounding procedures of the profile at one time; the profile bending machine has advanced structure and full functions and can be placed vertically or horizontally according to the user's use. It is a more advanced cnc profile bending machine in the 21st century, which is widely used in the production of various circular flanges in automobiles, elevators, petroleum, chemical, steel structures, machinery manufacturing, etc., and other industries.

As one of roll forming machine manufacturers, we will do our best to meet all the needs of customers.
