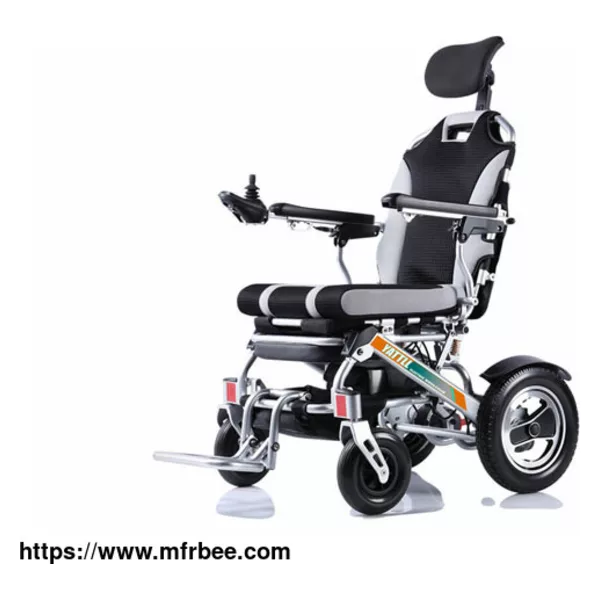

Electric Wheelchair Reclining And Lifting Adjust By Controller - YE245CR

FOB Price
USD $490.00 / Piece
Place Of Origin
China
Minimum Order
1
Packaging
N/A
Delivery
45 Days
The model of YE245CR is an upgraded VERSION of YE245C, with an electric backrest recline function added, it can be reclining and lifting by a controller. It has a air cylinder module, which makes the reclining and lifter very smooth, and holds 150kg at least.

Technical Information of Adjustable Electric Chair Reclining And Lifting Adjust By Controller

PARAMETER
Item No. CAMEL YE245CR
Reclining Yes ( reclining and lifting adjustable by controller)
Dimension (Unfolded) 104*62*98 cm / 41*24.4*38.6 in
Dimension (Folded) 80*62*34 cm / 31.4*24.4*13.3 in
Seat Width 45 cm / 17.7 inches
Seat Depth 45 cm / 17 inches
Backrest Height 53 cm / 20.8 inches
Floor-to-Seat Height 50 cm / 19.6 inches
Frame Lightweight Aircraft Quality Aluminum
Seat & Backrest Breathable durable seat cushion & pocket removable for easy clean
Controller Reliable Brushless Controller
Motors (pair) Brushless motor 180W *2 pcs
Batteries Lithium Battery 24V 11AH
Max Speed 6 km/h
Charger High Power 2A/3A
Charging Hour 6 Hours
Brake Electromagnetic Braking system Change Power mode to manual model freely
Armrest Simple designed Flip up armrest to excess in and out freely
Legrest Foldable legrest to let passengers be closer & safer to sit on the chair
Rear Wheel 12.5″ rear wheel, new designed with self absorb ability
Caster 8″ wheel, new designed with self absorb ability
Maximum Range 15-18 km / 9.3-11 miles
Weight Capacity 135KG / 300 lbs
Ground Clearance 4 cm / 1.6 inches
Max Slope 12 degrees
Net Weight Without Battery 25.5 kg / 56.2 lbs
Net Weight Including Battery 27.3 kg / 60.2 lbs
WARRANTY
frame 3 Years
Controller 12 Months
Motor 12 Months
Batteries 12 Months

YATTLL YE245CR Electric Wheelchair Reclining Power Wheelchair Display

Electric Wheelchair with Tilt and Recline
Cheap Fold Up Electric Chair
Drive Electric Fold Up Wheelchairs

If you have needs to buy a tilt and recline power wheelchair, please contact us.

There are many wheelchairs manufacturers in China, but we are one of the best choices for you.
