Cable
Product Quick Detail
- FOB Price
- USD $80.00 / Piece
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- Standard Exporting Packing，Carton Box，Customized Packing
- Delivery
- 20 Days
Specifications

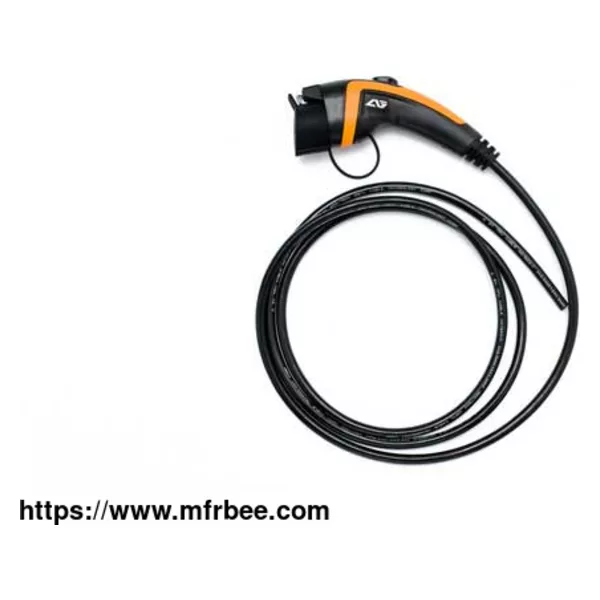

SAE J1772 Cable
Mechanical Properties
Mechanical life: no-load plug>10000times
Impact of external force: be able to afford 1m drop and 2tons vehicle run over pressure
Insertion and extraction force:<100N
Electrical Performance
Rated current: 16A/20A/32A
Rated voltage: 120V/250V
Insulation resistance: >1000MΩ(DC500V)
Pins temperature rise:<50K
Withstand voltage: 2500V
Contact impedance: 0.5mΩMax
Raw Material
Shell material: thermoplastics, flame retardant grade UL94-0
Plug pin:copper alloy, silver-plate
Environmental Performance
Temperature: -30℃~+50℃
SAE Type 1 Charging Cable Features
Conform to the provisions and requirements of SAE J1772 Standard-2012, it can charge all EV manufactured in the USA, correctly and effectively with high compatibility.
Using a riveting pressure process with none screw with beautiful appearance. Hand-held design conforms to ergonomic principle, plug conveniently. The head of pins using insulation design to prevent
direct contact with the hand. The customer is able to install the charger indoors or outdoor, according to actual demand. Firmly locking the charger on the installation backplane can prevent theft.
XLPO for cable insulation prolonging the aging resistance life-span. TPU sheath improves the bending life and wears resistance of the cable. The best material in the market at present conforms to
the latest European Union standards.
Special internal waterproof protection performance, protection grade achieved IP55 (working condition). The shell can effectively insulate the water from the body and enhance the safety level even
in bad weather or special circumstances.
Adopted double color coating technology, custom color accepted (the regular color orange, blue, green, gray, white)
Keep the laser logo space for customers. Provide OEM/ODM service to help customers expand the market easier.
Application of SAE Type 1 Charging Cable Features
Apply to Vehicle
Tesla model3, Tesla Model S, Tesla Model X, BAIC EU-Series, BYD Yuan/S2 EV, BYD e5, Chevrolet Volt, Mia, Mia Electric Van, Mitsubishi OUTLANDER PHEV, Nissan NV200 SE Van, Nissan leaf, SAIC Baojun
E-Series, SAIC Roewe Ei5 EV, BMW 530e/Le, Renault Zoe, Hyundai Kona EV, BMW i3, BYD Tang PHEV, Chery eQ EV, Toyota Prius PHEV, Volkswagen e-Golf, Geely Emgrand EV, Great Wall Ora R1 EV
Application in area
Commercial EV Charging/Workplace EV Charging, Hotels EV Charging, Home/Residential EV Charging, Public EV charging
SAE Type 1 Charging Cable Features Parameter
AG ELECTRICAL EV Charging cable Type2 acquires all safety and production certificates in electrical filed, ISO9001, ISO 14001, OHSAS 18001, SAE J1772-2012
Product Type EV Charging Cable Type 1
Rated Current 16A/20A/32A
Rated Voltage 120V/250V
Phase One Phase/Single Phase,Three Phase
Cable Specification H07BZ5-F3X2.5mm²+2x0.5mm²
（Wire length and the end of treatment according to the client configuration) H07BZ5-F3X6mm²+2x0.5mm²
Length Regular 5m, custom length accepted
Color orange, blue, green, gray, white, custom color accepted
Warranty 12 months
Certificate CE
Packaging Details Standard export wooden case or carton. Or as customer requirements
Delivery Time (days) Within 15days, if quantity >100, to be negotiated
We can offer kinds of j1772 connector for sale, and the price of j1772 connector is affordable, if you have needs, please contact us.
As one of ev charging equipment manufacturers, we will do our best to meet all the needs of customers.
