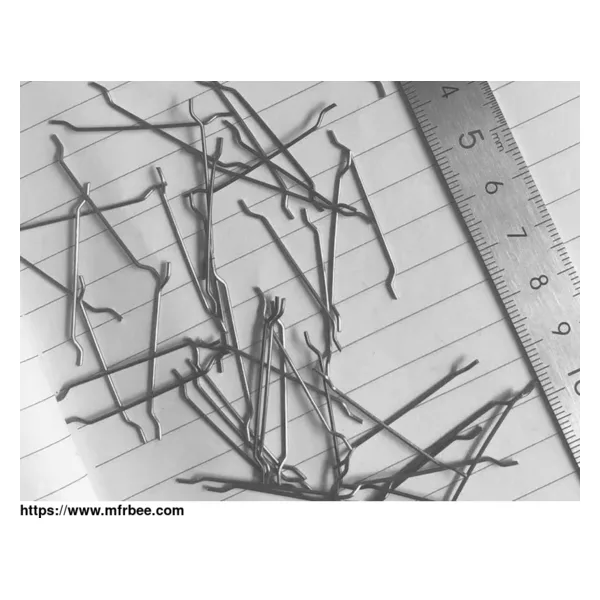

SDS Loose Hooked End Steel Fiber

Hooked end steel fibres are made of high-quality cold drawn steel line, in order to make sure that it has high tensile strength and animal tolerance. And the steel fiber in bulk ensures the mixing fast and convenient, and the distribution homogeneous. During pulling from the cement, the steel fiber hooked end is deformation slowly it is considered to be the best anchorage force.

Unlike conventional reinforced fiber, steel fibers focus on three-dimensional reinforcement and make it impossible for a plain crack to follow.

Advantages of Loose Hooked End Steel Fibre

Technology advantage

The design of end hooks at both steel fiber hooked end is the best anchoring design, which slowly deforms in the process of drawing, thus enhancing the binding force between hooked steel fiber and concrete.

Material advantage

SDS hooked steel fibre is made of high-quality wire by cold drawing, and its tensile strength is greater than 1100MPa, which ensures extremely small tolerance and high tensile strength.

Economic advantage

A.Compared with ordinary concrete, the same mixing and construction, do not need to add equipment.

B.Under the same strength, the concrete consumption can be saved

C.Replace or partially replace reinforcement

D. Shorten the construction period, especially suitable for large projects requiring continuous and rapid pouring of concrete.

Specification of Loose Steel Fiber Hooked End

Products Diameter Length L/D ratio TS Type Package

SDS-05030 0.50mm 30mm 60 >1150MPa Loose 20kg/bag,1ton/pallet

SDS-05530 0.55mm 55mm 55 >1150MPa Loose 20kg/bag,1ton/pallet

SDS-05035 0.50mm 50mm 70 >1150MPa Loose 20kg/bag,1ton/pallet

SDS-05535 0.55mm 35mm 64 >1150MPa Loose 20kg/bag,1ton/pallet

SDS-07550 0.75mm 50mm 67 >1150MPa Loose 20kg/bag,1ton/pallet

SDS-07560 0.75mm 60mm 80 >1150MPa Loose 20kg/bag,1ton/pallet

SDS-09050 0.90mm 50mm 56 >1150MPa Loose 20kg/bag,1ton/pallet

SDS-09060 0.90mm 60mm 67 >1150MPa Loose 20kg/bag,1ton/pallet

SDS-10050 1.00mm 50mm 50 >1150MPa Loose 20kg/bag,1ton/pallet

Applications of Loose Hooked End Steel Fiber

Hook End Steel Fiber For Industrial Floor

Hook End Steel Fiber For Tunnel

Hook End Steel Fiber For Bridge

Hook End Steel Fiber For Expressway

Hook End Steel Fiber For Railway Pavement

For more information about steel fibre price, please feel free to contact us!

There are many steel fiber suppliers, but we are one of the best choices for you.
