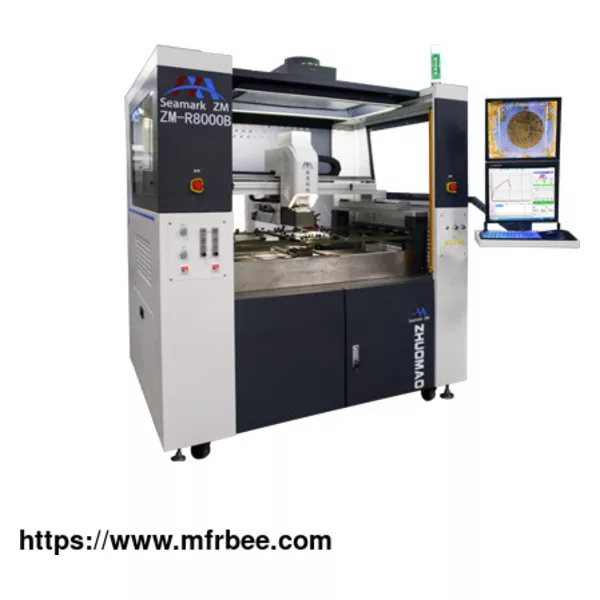

ZM-R8000B Large Precision Rework Station
Product Quick Detail
- FOB Price
- USD $200,000.00 / Piece
- Place Of Origin
- Shenzhen
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
R8000B Surface Mount/SMD BGA rework station is a large-scale precision rework station. This BGA rework system has a self-tuning temperature curve, large-area preheating platform, automatic feeding
and adsorption, high-performance, multi-loop heating system. As one of the most reliable BGA Rework Station manufacturers, Seamark ZM provides the best products with good quality.
Functions of R8000B Large Precision Surface Mount Rework Station
00 Large Area Preheating Platform
Independent three-temperature zone, the upper-temperature zone uses ceramic heaters, the preheating zone adopts German imported medium-wave ceramic infrared heating plates like infrared rework
station, each plate can be controlled independently, and the preheating area can be adjusted according to the PCB board size. The large heating area of 850*580mm is suitable for the repair of
larger PCB boards. The preheating zone automatically adjusts the distance from the PCB board to achieve the best performance.
01 Self-Tuning Temperature Curve
Industrial PC and servo motion control system for precise control, with multiple operating modes, real-time display and editing of temperature curves, each curve can be set to more than 12
segments, curve analysis can be performed automatically, and temperature curves can be automatically generated into massive log files and saved, which are convenient to recall the historical
parameters and trace the abnormal quality. With over-temperature protection and alarm function, the software can be encrypted and foolproof.
02 Automatic Feeding and Adsorption
The heating head has a built-in vacuum tube for chip adsorption, electrically controlled 360 degree rotation alignment, with negative pressure monitoring, and automatic feeder device to realize
automatic feeding and automatic receiving. With memory function, it can complete the desoldering and adsorption of the chip with one key, and the operation is simple.
03 HD Optical Inspection Module
Imported HD CCS (2m pixels) optical alignment system, which automatically moves the optical lens alignment through PC control servo system. 17dual screens are used to display the alignment effect
and operation interface respectively. The alignment function does not interfere with the operating system and the operation is convenient.
04 High-performance, Multi-loop Heating System
External uses 5-channel temperature measurement interface, internal adopts high-precision K-type thermocouple with accuracy up to ± 1 ℃, it has dynamic PID multi-loop closed control selective
reflow soldering process. At the same time, it can be connected with nitrogen heating to protect PCBA from oxidation and yellowing. Flowmeter negative pressure is precisely adjusted.
As one of the top BGA Rework Station suppliers in China, Seamark ZM is famous for its rich technical force, complete detection means, reliable product quality, full service. If you want to know
some different types of automatic BGA rework stations and to get a perfect kind of repair machine for your factory, please contact Seamark ZM first.
Specification Of R8000B Large Precision Surface Mount Rework Station
Power Supply AC380V±10% 50/60HZ
Power Total power27.65KW
Upper temperature zone(1.45KW)
Lower temperature zone(1.2KW)
Other power(1.8KW)
Preheating temperature zone(23.2KW)
PCB Size 800*660mm(Max); 10*10mm(Min)
BGA Chip Size 80*80mm(Max); 2*2mm(Min)
IR Heater Size 850*580mm
Motion Control X/Y/Z
Temperature Sensor 5 Pcs
Control System Industrial PC+ Servo motion control system
Display System 17"HD industrial display(1080P16:9)+17"SD display
Alignment System 2 Million pixels HD digital imaging system, automatic optical zoom, laser red-dot indicator
Vacuum Adsorption Automatic
Alignment Accuracy ±0.01mm
Temperature Control K-type thermocouple closed-loop control with accuracy up to ±1℃
Feeding Device Yes
Positioning L-groove with universal fixture (shaped fixture can be customized)
Dimensions L1620*W1370*H1950mm
Weight 840.5KG
Seamark ZM is a professional x ray inspection machine manufacturer. We provide zm r7220c, smd rework station board, pcba inspection machine and etc. Zhuomao has specialized in research,
development, production, and sells superior quality BGA rework stations for more than 10 years.
