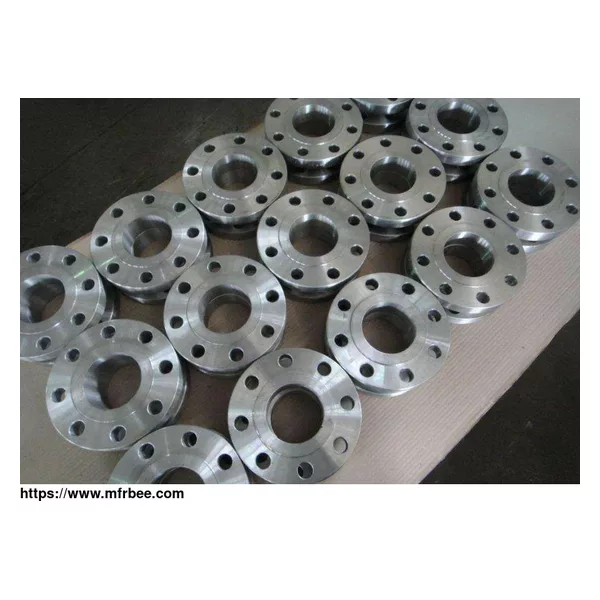

Socket Weld Flanges
Product Quick Detail
- FOB Price
- USD $10.00 / Piece
- Place Of Origin
- china
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
https://www.sstubecn.com/forged-flanges/socket-weld-flanges.html
Product description
Reducing socket weld flange is a flange with one end welded with steel tube and the other end connected with bolts. It is suitable for connecting pipe with small diameter, high pressure and high
temperature, usually used in the pipelines with PN≤ 10.0mpa and DN≤40.
Socket weld flanges are counter-bored to receive the pipe earlier than being fillet welded. The bore of the pipe and flange are both the equal to grant exact float characteristics. Stainless steel
socket weld flanges are oxidation resistant and promote better weldability and fabricability. WENZHOU HUASHANG STEEL CO.,LTD is one of professional socket weld flange suppliers in industry,
offering high quality products for all the customers.
Explore more about socket weld pipe flanges:
What's The Difference Among Weld Neck Flanges, Socket Weld Flanges, Slip On Flanges?
What is socket weld?
Socket Welding Flanges Material
Stainless Steel :
OCr18Ni9, 0Cr18Ni9Ti, 1Cr18Ni9Ti, 0Cr18Ni12Mo2Ti, 00Cr19Ni10, 00Cr17Ni14Mo2, ASTM A182-F304, F304L, F304H, F316, F316L, F321, F321H, F347H, F317,
Super Stainless Steel:
ASTM A182-904L, 317, 317L
Duplex Steel：
ASTM A182-F51, F53, F44
Special steel：
N06600, N08800, N08811
Alloy Steel:
16Mn, 12CrMo, 15Cr5Mo, Cr5Mo, 12Cr1MoV, ASTM A182-F11, F22, F91 F9 F5
Pipe Line：
ASTM A694-F42, F46, F48, F50, F52, F56, F60, F65, F70, F80
Carbon Steel：
ASTM A350-LF2, LF3 Q235A, 20#, ASTM A105
Socket Welding Flanges Standard &Size &Rate
ASME/ANSI B16.5 1/2"-24" 150LB
1/2"-3" 300LB 600LB
1/2"-2-1/2" 900LB 1500LB
Socket Welding Flanges Tests and Inspections
Analytic instrument of C&S
Machine Performance Test
Chemical Composition Analysis
Permeation Test
Ultrasonic Test
Metallographic microscope Test
Intergranular Corrosion Test
Hardness Test
Ferrite test
Impact Test(Low temperature, Normal temperature,-196 temperature.)
Test methods for pitting corrosion resistance
Magnetic particle inspection
Socket Welding Flanges Documentation Offered
Raw Material Test Report
EN10204 3.1 Test Certificate
Heat Treatment Chart
Heat Treatment Report
Quality Assurance Plan
Inspection and Test Procedure Report
Socket Weld Flanges Application
Stainless steel socket weld flange uses in oil and gas pipeline
Socket welding raised face flange uses in chemical industry
Alloy steel SWRF flange uses in plumbing
Socket weld flange uses in water supply systems
Asme b16.5 socket weld flange uses in power plant
Nickel alloy socket weld flange uses in paper industry
Monel 400 socket weld flange uses in general purpose applications
Monel 800 socket weld flange uses in fabrication industry
254Mo socket weld flange uses in petroleum
C-276 socket weld flange uses in papermaking
Alloy 20 socket weld flange uses in shipbuilding
High quality socket weld flange uses in petrochemical
Dulex steel socket weld flange uses in natural gas industry
Super duplex socket weld flange uses in ocean engineering
Ss socket weld raised face flange uses in nuclear industry
Hastelloy socket weld flange uses in food and beverage
Raised face socket weld flange uses in electrical powerplant
Ss nickel alloy socket weld flange uses in pharmacy
Application Areas
Aerospace
HUASHANG Aerospace tubing are used for two fuselage and instrumentation and Helicopter systems.
Oil & Gas
The Huashang program includes a wide range of merchandise for use in oil refining, petrochemical processing and gasoline processing. One of our specialties is tubular merchandise in corrosion
resistan...
Medical Devices
Medical Quality tubing is manufactured from T316L certified stainless steel in OD’s from 0.19mm to 25mm two , “MQ” tubing is welded and mandrel drawn to about 1/8 – half tough temper, relying on
t...
