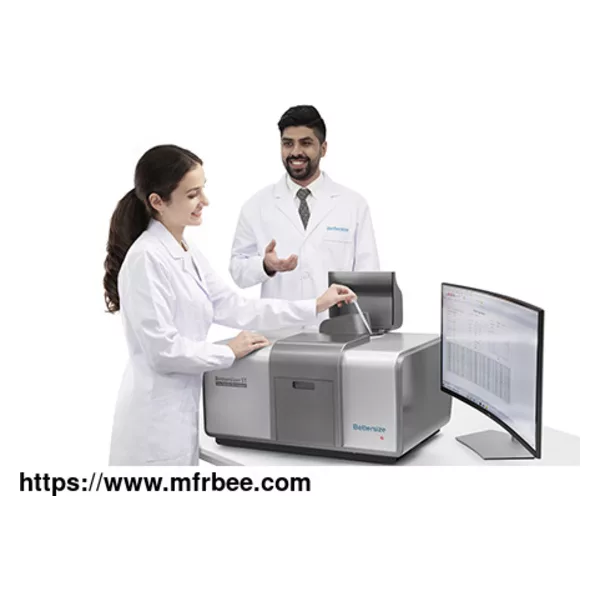

Bettersizer ST
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
The Bettersizer ST is an automated laser scattering particle size distribution analyzer designed for industrial quality control. Its patented DLOS (Dual Lens Optical System) guarantees the
instrument to provide consistent and reliable particle size distribution results. The SOP (Standard Operating Procedure) and automated analysis procedures are designed to help you save valuable
time for quality inspection. Skip complex operations with Bettersizer ST: Simply click "Start", add the sample, and Bettersizer ST will provide the particle size distribution analysis for you.
Measurement: Particle size
Particle size range: 0.1 to 1000µm
Dispersion type: Wet
Technology: Laser diffraction
Analysis: Mie scattering theory and Fraunhofer diffraction theory
Detector: 86 high-speed photodetectors (forward, lateral and backward arrangements)
Measuring angle: 0.031-159°
Overview
EXCELLENT ACCURACY
Accuracy Verification of Standards
Duke standard samples were measured separately by the Bettersizer ST laser particle sizer, showing the distribution peak in the correct position and narrow distribution with high accuracy.
The red line is the nominal size range of standards ± 1.0%, and the black dots are the measured sizes. As shown in the figure, the measurement accuracy of Bettersizer ST laser particle sizer for
standards is within 1%.
OUTSTANDING REPEATABILITY
Exceptional repeatability provided by Bettersizer ST laser particle sizer ensures the reliability of the results. Rapid measurements with consistent and reliable results can ease your workload on
quality control.
Excellent Repeatability From: - Stability of signal transmission systems - Efficient dispersion system - Automatic alignment keeps the instrument always in optimum condition - Signal acquiring rate
up to 3500 times/second
Repeatability Tests
The outstanding repeatability of Bettersizer ST, demonstrated by the following two consecutive tests.
Legendary Ease-of-Use
The Bettersize software provides various functions that greatly reduce your workload.
Ⅰ . Intuitive Software
Ⅱ . Intelligent Data Evaluation for Quality Control
Ⅲ . Performance Validation
Ⅳ . System Inspection
Cost-Efficiency & Robustness
Outstanding Robustness
- Integrated casting of the bottom plate to protect the instrument
- Accurate measurements can be achieved even after a robustness test
- Long-life fiber semiconductor laser source
- Durable circulation tank with casted stainless steel
- Power-adjustable ultrasonic disperser with dry run protection
Compact Design
- Save valuable workspace for factories and laboratories with an internal wet dispersion system
- The DLOS ensures result accuracy and reliability, while avoiding folding optics that are susceptible to misalignment
Simple Maintenance
- Simple disassembly of sample cells allows a quick cleaning, which can be easily accessed without professional tools and excessive clean formulations
- Auto-cleaning function for the circulation tank eases the maintenance work greatly
- Auto-cleaning process can be easily customized in the software
Low Cost of Ownership
- Entry-level price for particle size measurement units
- A measurement range that covers most applications can be achieved with DLOS without additional cost for a second laser source
Standard Operating Procedure (SOP)
SOP is an easy solution for standardized and automatic testing. It ensures the measurement results are operator- independent, objective and reliable.
INNOVATIVE DLOS TECHNOLOGY
The DLOS (Dual Lens Optical System) is a patented optical system designed by Bettersize Instruments. In DLOS, one single laser source and two large Fourier lenses are utilized, and the combination
of wide-angle forward, lateral and backward photodetectors allows consistent and accurate results with a measurement range from 0.1 to 1000 μm.
Specification
If you want to know details of granulometry , please contact us.
- Country: China (Mainland)
- Business Type:
- Market:
- Founded Year:1995
- Address:No.9,Ganquan Road,Jinquan Industrial Park,Dandong,Liaoning,China.
- Contact:Spring Xu
