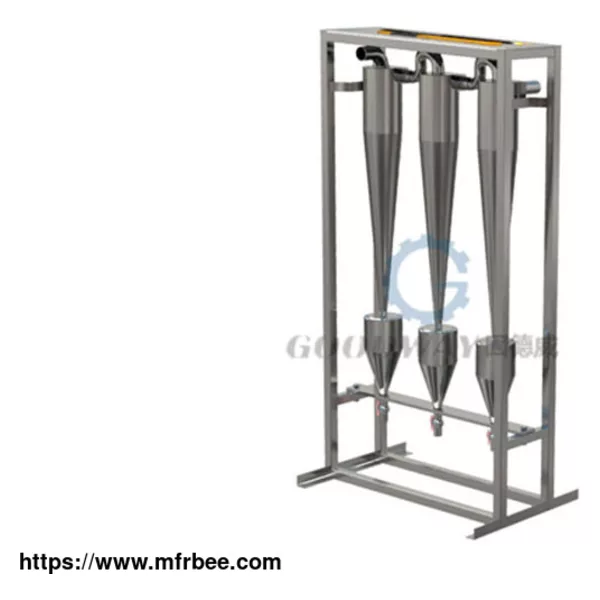

Cassava Desander and Desilter

desanding machine, desanding equipment, desanding system, desanding plant

desander price

desander for sale

Features of Cassava Desander Desilter

Processing Capacity: 10-20m3/hour

Application Scope: Remove the sand and silt from the starch slurry

Product Introduction: Cassava processing machine, desander, and desilter, the desanding cyclone for cassava starch processing

1. No moving part

2. High wear resistance

3. High performance and efficiency

4. Very low maintenance

5. Easy installation

6. Low-cost separation

Product Description of Desander and Desilter

Solid control equipment that separates sand and silt from the raw starch milk. Desanding machine, desanding equipment, desanding system, desanding plant is installed before the desilter and normally the solids diameter for desander to be separated would be larger than for desilter.

Product Application of Desander and Desilter

1. Sand and silt separation from cassava starch slurry

2. Sand and silt separation from potato starch slurry

Technical Parameters of Desander

Model no. GD-CS-3

Production capacity 20m3/hour

Sand removal rate ≥99%

Working voltage 380V/50Hz 3Phase

Motor power

Hydraulic cyclone series 3

Cyclone cone angle 8.90

Working pressure 0.25-0.4MPa

Inlet/Outlet diameter 40mm

Separation size 45-74μm

Dimension(L×W×H) 950×600×1800mm

Weight 32kg

Technical Parameters of Desilter

Model no. GD-CN-7

Production capacity 10m3/hour

Sand removal rate ≥99%

Working voltage 380V/50Hz 3Phase

Motor power 7.5kw

Hydraulic cyclone series 7

Cyclone cone angle 8.80

Working pressure 0.25-0.4MPa

Inlet/Outlet diameter 60mm

Separation size 15-44μm

Dimension(L×W×H) 600×400×1250mm

Weight 88kg
