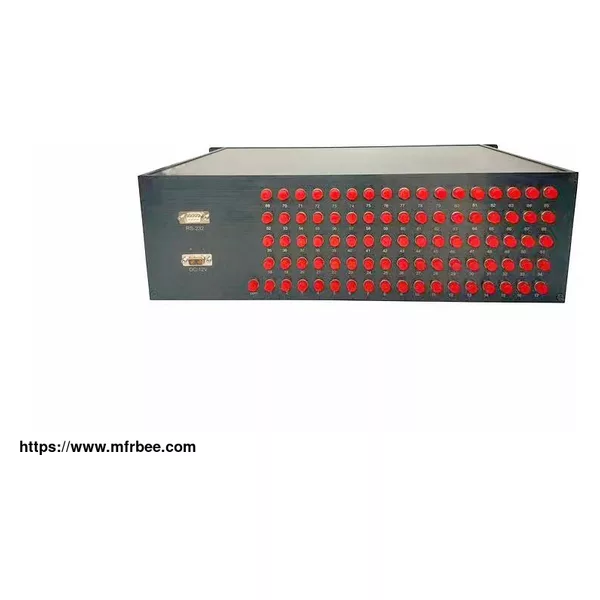

1X200 rackmount optical switch
Product Quick Detail
- Price1
- 3500
- Place Of Origin
- china
- Minimum Order
- 1
- Packaging
- Carton packing
- Delivery
- 7 Days
Specifications
XH-FSW-1X200 rackmount optical switch is a kind of optical path control equipment, which can control optical path manually, proximity and remote via keypad, serial communication and Ethernet communication. The FSW-1X200 rackmount optical switch is a kind of optical path control equipment, which can control optical path switching manually, near-range and remotely through keypad, serial communication and Ethernet communication. It plays an important role in optical communication applications. Optical switches are mainly Optical switch is mainly used in optical transmission system for multiple optical monitoring, LAN multiple light sources / detectors automatic switching and optical sensing multi-point dynamic monitoring The optical switch is used in optical fiber, optical device, network and field engineering optical cable testing; optical device installation and adjustment.
Features
(1) With small insertion loss and fast switching speed, etc.
(2) The internal circuit of the optical switch is self-detecting, and the fault alarm informs.
(3) The serial port adopts FT-232 industrial-grade USB to RS-232 chip.
(4) LCD display is adopted to display the status of the optical circuit very intuitively, which is convenient for the user’s operation.
(5) Can send commands through the key and serial port, network port to control the light path switching settings. And the key operation can be locked through the serial command.
Performance
| Parameter | Parameter Values |
| Model | XH-FSW-1XN-U |
| Wavelength Range | 1260~1650nm |
| Insertion Loss | ≤ 1.2 dB |
| Repeatability | ≤ 0.02 dB |
| Return Loss | ≥ 50 dB |
| Crosstalk | ≥ 70 dB |
| WDL | ≤ 0.25 dB |
| PDL | ≤ 0.05 dB |
| Fiber Type | SM(9/125um) |
| connector | FC\PC |
| Monitoring port | RJ45,RS-232 |
| Operating power | AC:100~240V |
| Operating Temperature | -10 ~ +60ºC |
| Operating Temperature | -40 C ~ +85 C |
| Dimension | 19″ 1U(483 X 230 X180) |
