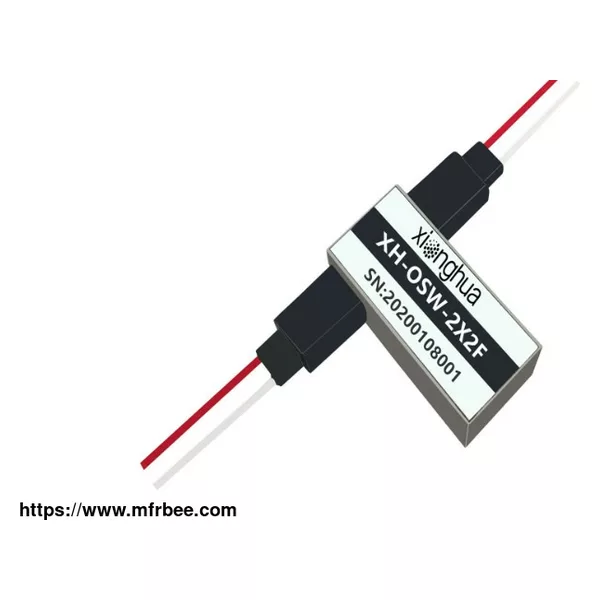

2X2F optical switch
Product Quick Detail
- FOB Price
- USD $25.00 / Piece
- Place Of Origin
- china
- Minimum Order
- 1
- Packaging
- Carton packing
- Delivery
- 7 Days
Specifications
XH-OSW-2X2F optical switch is a kind of optical path control device, which has the function of controlling the optical path and converting the optical path; it can realize the two-way direct and cross function of the optical path. It plays an important role in optical communication applications. Optical switches are mainly used in multi-channel optical monitoring in optical transmission systems, LAN multi-light source/detector automatic switching, and optical sensing multi-point dynamic monitoring system optical test systems for optical fibers, optical devices, networks and field engineering optical cables Test; optical device installation and adjustment.
Features
●Low insertion loss, wide wavelength range
●Low channel crosstalk, high stability, high reliability
●Simple control, small size, easy to embed in the circuit board
●Locking and non-locking control types can be selected
Performance
| Parameter | Parameter Value |
| Model | XH-OSW-2X2F |
| Insertion loss（dB） | Typ：0.5 Max：1.0 |
| Wavelength Range（nm） | 800~1310 & 1260~1650 |
| Working Wavelength（nm） | 850/980/1310 & 1310/1550/1625 |
| Return Loss（dB） | MM≥30 & SM ≥50 |
| Channel Crosstalk（dB） | MM≥ 35 & SM ≥55 |
| PDL（dB） | ≤0.05 |
| WDL（dB） | ≤0.25 |
| TDL（dB） | ≤0.25 |
| Repeatability（dB） | ≤±0.02 |
| Lifetime（Times） | ≥107 |
| Switching Time（ms） | ≤8 |
| Transmission Power（mW） | ≤500 |
| Operating Voltage（V） | 3 or 5 |
| Operating Temperature（℃） | -20~+70 |
| Storage Temperature（℃） | -40~+85 |
| Dimension（mm） | (L)27.0×(W)12.5×(H)8.4±0.2 |
