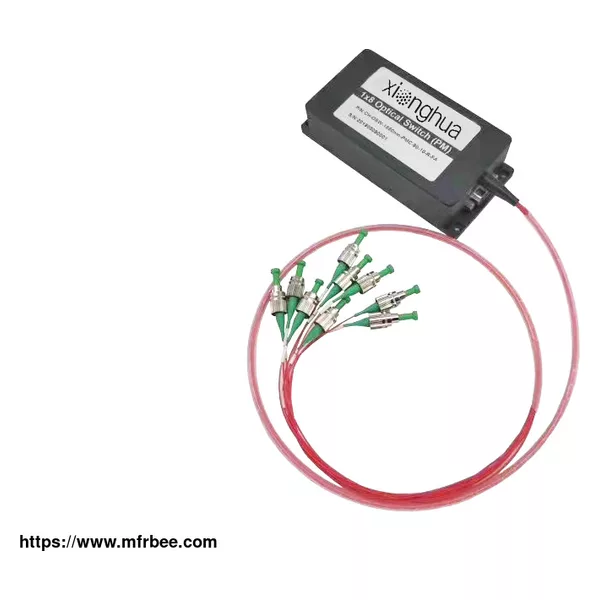

1X8 Polarization Maintaining Optical Switch
Product Quick Detail
- FOB Price
- USD $500.00 / Piece
- Place Of Origin
- china
- Minimum Order
- 1
- Packaging
- Carton packing
- Delivery
- 15 Days
Specifications
XH-OSW-1X8 PM optical switch is an optical path control device, which has the role of controlling the optical path and converting the optical path. It has an important role in optical communication applications. The optical switch is mainly used in optical transmission system for multiple optical monitoring, LAN multi-source/detector automatic switching and optical sensing multi-point dynamic monitoring system optical test system for optical fiber, optical devices, network and field engineering optical cable testing; optical device installation and adjustment.
Features
Low insertion loss, wide wavelength range
Low channel crosstalk, high stability, high reliability
Proprietary technology, no glue in the optical path
Locking and non-locking control types are available
Performance
| Parameter | Parameter Values |
| Model | XH-OSW-1X8-PM |
| Insertion Loss | 1 |
| Typ:0.5 dB Max:1.2 dB | |
| Wavelength Range | 1550nm |
| ER | 18dB |
| Return Loss | ≥ 55dB |
| Crosstalk | ≥ 50 dB |
| PDL | ≤0.05dB |
| WDL | ≤0.25 dB |
| TDL | ≤0.25 dB |
| Repeatability | ≤0.02 dB |
| Lifetime | ≥107 |
| Switching Time | ≤10 ms |
| Fiber Type | PM(Polarization Maintaining Panda Fibers) |
| Transmission Power | ≤500 mW |
| Connector | FC/APC |
| Control | TTL ,RS232 |
| Operating Voltage | 5V |
| Working Current | 500mA |
| Operating Temperature | -20 ºC ~ +70 ºC |
| Storage Temperature | -40 ºC ~ +85 ºC |
| Dimensions | 135 (L) x 64 (W) x 32 (H)mm |
