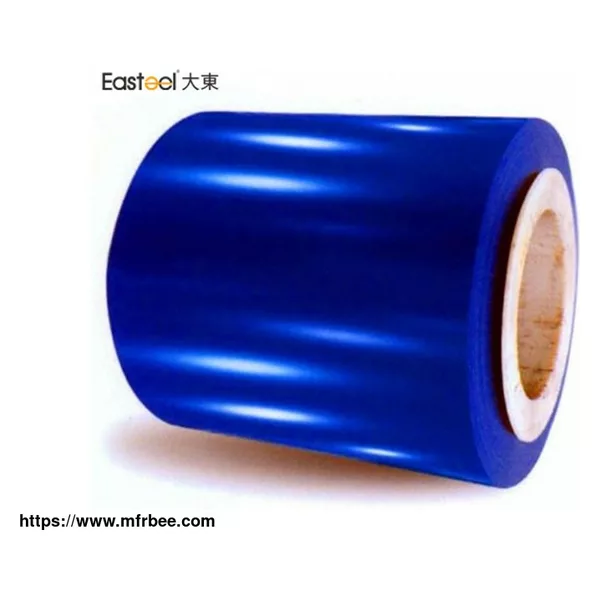

Solid Color Aluminum Coil

The coating of color-painted aluminum coil is divided into a polyester-coated aluminum coil (PE) and fluorocarbon coated aluminum coil (PVDF). The polyester coating formed by repeatedly baking and coating on the surface of the aluminum plate can form a continuous solid film firmly attached, which has the characteristics of protection and decoration. It is a kind of anti UV coating. Polyester resin uses a high molecular polymer containing an ester bond in the main chain as a monomer and adds alkyd resin.

UV absorber can be divided into sub gloss and high gloss series according to the gloss. It can give colorful aluminum products rich colors, good gloss, and smoothness, superior texture and handle, and also can increase the sense of hierarchy and three-dimensional. It can protect pre painted aluminum coil from ultraviolet radiation, wind, rain, frost, and snow; due to temperature difference, freeze-thaw cycle, corrosive gas, and microorganism, the coating can play a protective role. It is especially suitable for interior decoration and advertisement boards.

Advantages of Prepainted Aluminum Coil

Flatness:

Comopared with prepainted galvanized steel sheet, there is no compound high-temperature indentation on the surface. There is no residual stress and no deformation after shearing.

Decorative:

Painted with wood grain and stone grain, colored aluminum coil has realistic physical texture and fresh natural beauty. The pattern is made at will, giving customers a wide range of personality choices, enriching the humanistic connotation of the product, and giving people more enjoyment of beauty.

Weather Resistance:

The pattern of baking paint, which is made by coating and baking at high temperature, like the color coated galvalume sheet, has high gloss retention, good color stability, and little change of color difference. Polyester paint warranty for 10 years, fluorocarbon paint warranty for more than 20 years.

Mechanical:

High-quality aluminum, plastic, and adhesive are selected, and advanced composite technology is adopted. Colored aluminum coil has the bending strength and bending strength required by the decorative plate. In the four seasons, the changes of wind pressure, temperature, humidity, and other factors will not cause bending, deformation, expansion, and so on.

Environmental Protection:

Color coated aluminum coil can resist the corrosion of salt alkali acid rain, can't corrode itself, can't produce poisonous bacteria, can't release any poisonous gas, can't cause the corrosion of keel and fixing parts, and has flame retardancy. According to the national regulations, it is not lower than the B1 level.

Specification of Pre-painted Aluminum Coil

Aluminum coil/Aluminium coil/Pre-painted aluminum coil（CC And DC）

Aluminium Alloy Thickness（mm) Width(mm) Temper

A1050,A1060,A1070,A1100 0.2-8.0 20-2300 O,H12,H14,H16,H18,H22,H24,H26

A3003,A3004,A3105 0.2-8.0 20-2300 O,H12,H14,H16,H18,H22,H24,H26

A5052,A5005,A5083,A5754 0.2-8.0 20-2300 O,H12,H14,H34,H32,H36,H111,H112

A6061,A6082,A6063 0.2-8.0 20-2300 T4,T6,T651

A8011 0.2-8.0 20-2300 O,H12,H14,H16,H18,H22,H24,H26

Materal process CC AND DC

Customerize size Size can be produced as per clients requirement

Surface Mill finish，Color coated（PVDF&PE），Stucco Embossed, Bright Polish，Anodizing

Mirror，Brush，Perforated，Tread plate，Corrugated etc

Quality Standard ASTM B209,EN573-1

MOQ per size 5 tons

Available alloy 1050 1060 1100 3003 3004 3105 5005 5052 5251 5754 6061

Painting type PE and PVDF

Guarantee time PE 10-15 years，PVDF 20-25 years

Colors all colors. Normally refer to RAL Color book or based on customer’s sample.

Coil ID 405mm,505mm,605mm

Weight per package Normally 500kg to 3000kg,customized

Application of Pre-painted Aluminum Coil

The color-coated aluminum coil has a rich range of colors, whether it is a residential, large commercial network or large exhibition center, the color-coated aluminum coil can add color to it. Good plasticity and machinability make it an ideal material for all kinds of architectural modeling. The pre-painted aluminum coil has provided architects, designers, and owners with personalized color space for exterior walls and ceilings, and it is also the most ideal material for architectural modeling. Whether it is a multi-functional large-scale building or a unique creative new building, pre-painted aluminum coil can always meet the different requirements of modern and classical architectural styles, and make the building colourful. The products are widely used in many fields, such as electronic appliances, instruments, lighting, packaging, home decoration, and so on.

The products are widely used in the fields of Architecture (aluminium-plastic panel, aluminium honeycomb, roof wave board, fireproof panel, aluminium ceiling, shutter, rolling shutter door, garage door, awning, gutter), electronic appliances (computer case, electrical panel), lighting, furniture, solar reflector, air conditioning duct, etc.
