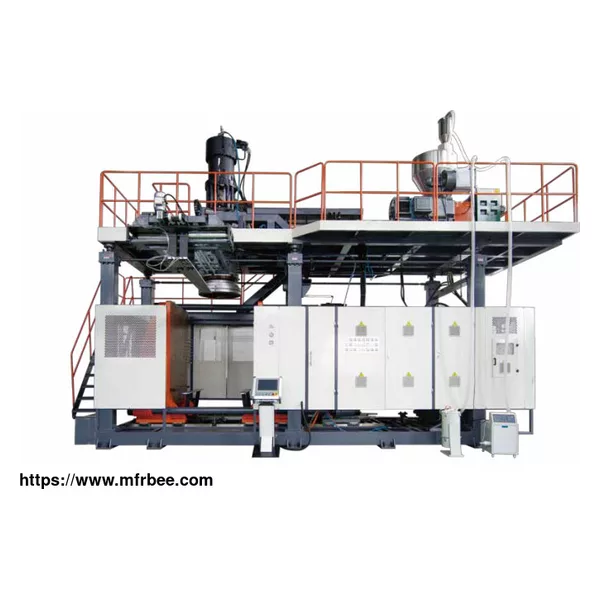

HDPE Blow Molding Machine
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
JWELL is one of the leading HDPE blow molding machine manufacturers and blow molding machine suppliers in China. The HDPE blow molding machine, also called HDPE blow moulding machine, is mainly
used for processing unsupported parisons. The advantages of HDPE moulding machine are high production efficiency, low equipment costs, wide selection of molds and machinery, and the HDPE molding
machine disadvantages are high scrap rate, waste recycling, Poor utilization, the thickness control of the product during hdpe blow molding machine process, and the dispersibility of the raw
materials are restricted, and trimming operations must be performed after molding. If you are interested in our hdpe blow molding machine, do contact us for the HDPE blow moulding machine price!
Description about HDPE Blow Molding Machine
Item Description
Place of origin China
Brand name JWELL
Model number HDPE Material
Minimum order quantity 5L
Packaging details Wooden pallet packing
Delivery time 90days
Payment terms TT. LC
Specifications of HDPE Blow Molding Machine
HDPE hdpe blow moulding machine Technical Details
Model Unit BM30 BM50 BM100
Max product volume L 30 50 100
Dry cycle Pc/h 600 450 360
Die head structure Accumulating type
Main screw diameter mm 80 90 100
Max plasticizing capacity (PE) kg/h 120 180 190
Driving motor Kw 37 45 55
Accumulating volume L 5.2 6.2 12.8
Oil pump motor power Kw 15 18.5 22
Clamping force KN 280 400 600
Space between platen mm 400-900 450-1200 500-1300
Platen size W*H mm 740*740 880*880 1020*1000
Max.mould size mm 550*650 700*850 800*1200
Heating power of die head Kw 20 28 30
Machine dimension L*W*H m 4.3*2.2*3.5 5.6*2.4*3.8 5.5*2.5*4.0
Machine weight T 12 13.5 16
Total power Kw 95 110 135
Note: Informations listed above are for reference only, the production line can be designed by customer’s requirements.
HDPE Blow Molding Machine Application
HDPE Blow Molding Machine Performance and Advantages
HDPE plastic blow molding machine manufacturer use Storage head, high-efficiency screw, bottom blowing Structure can be equipped with automatic flash removal, the product is on Line leak detection,
weighing, conveying, flash online Conveying system to reduce labor costs, HDPE blow moulding machine price and increase Productivity.
Using B&R automation parison programmer, Support multi-task time-sharing operation, automatic High degree of chemistry; 400-point wall thickness control System, ATOS servo valve, parison
Accurate thickness control.
The mold-moving frame adopts a tie-bar-less structure, which has the characteristics of uniform mold clamping, large clamping force, large modulus, and more convenient mold disassembly and
assembly; mold movement, mold opening, and closing are controlled by a servo system and electronic ruler to achieve a gentle slope and silent sports.
