Specially designed for large image circle up to 82mm in length
Suitable for line scan cameras such as 16K x 5μm,16K x 3.5μm,12K x 5μm, 8K x 7μm, etc, and area scan camera such as 155 mega pixels, 151 mega pixels
The adjustable iris of this machine vision telecentric lens series is adopted to balance the DOF and resolution perfectly
Excellent uniformity and little-to-no distortion
Some models support inner L90 steering, saving installation space
16 standard models available, support object FOV from 45mm to 390mm
Long working distance from 120mm to 700mm
M95 Mount, support customized mount

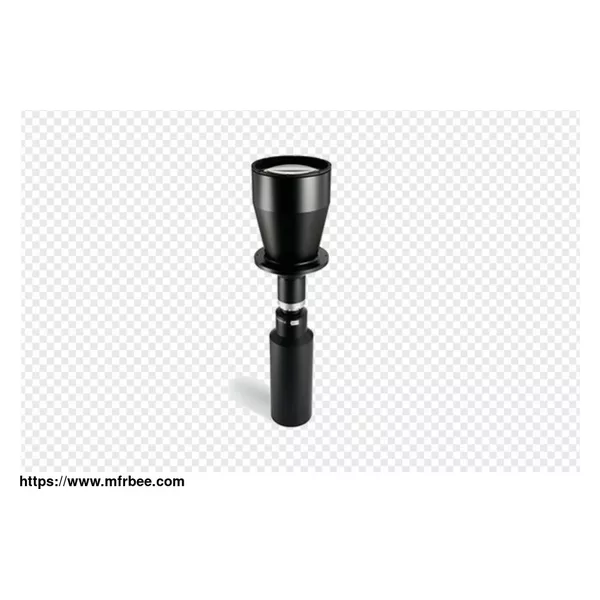

16k Line Scan (82mm) Telecentric Lens Specification
Model Optical Size Diagonal (mm) FOV Length (mm) Lens Length (mm) Max Diameter (mm)
Line Scan Lens XF-PTL39082-M95-12-VI 16k x 5μm 81.92 369 1365.3 430
Line Scan Camera Lens XF-PTL35082-M95-12-VI 16k x 5μm 81.92 331.7 1145 376
Line Scan Camera Lens XF-PTL31082-M95-12-VI 16k x 5μm 81.92 293.6 1072.7 340
Line Scan Camera Lens XF-PTL26882-M95-12-VI 16k x 5μm 81.92 253.6 1006.4 300
Line Scan Lens XF-PTL23882-M95-12-VI 16k x 5μm 81.92 225.7 947.8 270
Line Scan Lens XF-PTL19582-M95-12-VI 16k x 5μm 81.92 184.5 799.8 222
Line Scan Lens XF-PTL18282-M95-12-VI 16k x 5μm 81.92 172.5 773.3 210
Line Scan Lens XF-PTL15282-M95-12-VI 16k x 5μm 81.92 143.7 725.4 180
Line Telecentric Scan Lens XF-PTL13782-M95-12-VI 16k x 5μm 81.92 129.8 686.3 166
Line Telecentric Scan Lens XF-PTL12282-M95-12-VI 16k x 5μm 81.92 115.7 678.3 166
Line Telecentric Scan Lens XF-PTL11082-M95-12-VI 16k x 5μm 81.92 104.4 639.6 130
Line Telecentric Scan Lens XF-PTL09282-M95-12-VI 16k x 5μm 81.92 86.9 590.4 120
Line Scan Camera Lens XF-PTL08082-M95-12-VI 16k x 5μm 81.92 75.9 565.7 104
Line Scan Camera Lens XF-PTL06582-M95-12-VI 16k x 5μm 81.92 61.7 531 90
Line Scan Camera Lens XF-PTL05582-M95-12-VI 16k x 5μm 81.92 52.1 515.4 79
Line Scan Camera Lens XF-PTL04582-M95-12-VI 16k x 5μm 81.92 42.7 472.4 70
To provide extensive optical solutions in machine vision optics systems, Canrill Optics, as a custom lens manufacturer, has been keeping developing, manufacturing and marketing telecentric lens for
machine vision since 2009. In 2019 and 2020, Canrill Optics has successfully upgraded the telecentric lens to 4th generation PTL series and developed new series of non-telecentric Canrill lens.
