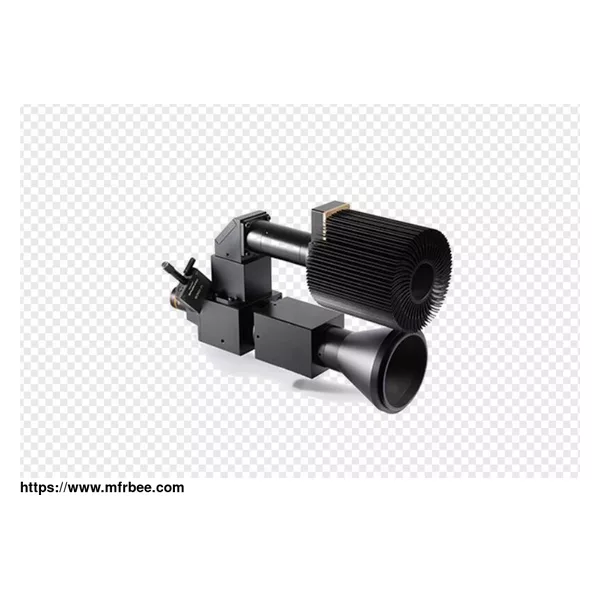

Microscope Objective Lens

Suitable for ITO, particle detection, wafer inspection

Infinity optical design for different microscope lenses can match infinity objective lens with a different mag

High-contrast & brightness image solution

Microscope objective design of new modular allows customizing different optical layouts on customers' requests

1x Microscope Objective

Lens Specification

Model Objective Magnification CCD Max Size Objective Aperature Diameter Image Path Spectrum Light Path Spectrum Laser Path Spectrum Lighting Path Mount Objective Lens Mount

Microscopy Lens XF-VM3-1X-C 1X 4/3 φ12mm Visible Visible / /8mm point illumination M26×0.706

Microscopy Lens XF-VM3-1X-N 1X 4/3 φ12mm Visible / / / M26×0.706

Microscopy Lens XF-VM3-05X-C 0.5X 2/3 φ12mm Visible Visible / 8mm point illumination M26×0.706

Microscope Lens XF-VM3-1X-DIC 1X 4/3 φ12mm Visible Visible / /30W Blue LED M26×0.706

Microscope Lens XF-VM3-1X-CL 1X 4/3 φ12mm Visible Visible / /8mm point illumination Support to objective turret with depth less tham 45mm

Microscope Lens XF-VM3-05X-CL 0.5X 2/3 φ12mm Visible Visible / /8mm point illumination Support to objective turret with depth less tham 45mm

Microscopy Lens XF-VM3-D0510 Vertical 0.5X/Horizontal1X Vertical 2/3 φ12mm Visible / / 8mm point illumination M26×0.706

Microscopy Lens XF-VM3-LA1X-C1-NIR 1X 1.1 φ12mm Visible Visible 800-1200nm 8mm point illumination M26×0.706

XF-VM3-LA1X-C2-NIR-CL 1X 1.1 φ12mm Visible Visible 800-1200nm 8mm point illumination Support to objective turret with depth less tham 45mm

Microscope Objective Lens Types

In general, when it comes to the microscope objective lens types, we refer to the different magnification and uses of the four most commonly different microscope lenses on composite optical microscopes.

Scan the lens (4x)

The scanning objective is designed for getting bearings right before moving onto the low power lens.

Low-power lens (10 x)

The low-power microscope objective lens usually has 10x or 20x magnification. You can identify it by a yellow stripe around the lens housing. This objective can be very useful for viewing prepared specimens on slides.

High-power lens (40 x)

The high-power microscopy lens is applied for looking at smaller specimens like bacteria and cells that are invisible to the naked eye.

Oil-immersion lens (100 x)

These lenses are called ‘oil immersion lenses’ because you usually need to use them with oil in order to view your specimen.

Microscope Objective Working Distance

In general, the operating microscope objective working distance decreases with magnification and numerical aperture. Nowadays, the popular trend is to produce dry microscope objectives with as long working distances as possible, but this requirement is partly limited by a high numerical aperture that requires high resolution. This usually result in the manufacturers making a compromise between these two parameters.

As one of camera lens makers, we will do our best to meet all the needs of customers.

If you want to know more types of industrial camera lens, please leave us a message.
