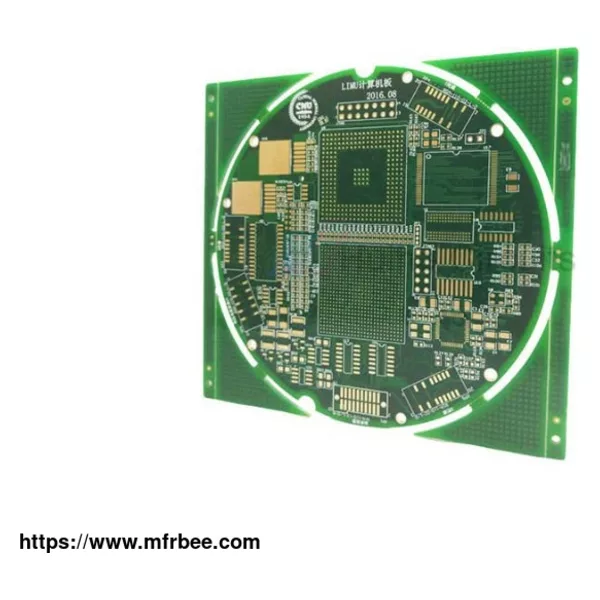

12 Layer ENIG PCB

Minimum Order
1
Packaging
N/A
Delivery
15 Days
Number of layers: 12
Surface finish: ENIG
Base material: FR4
Outer Layer W/S: 7/4mil
Inner layer W/S: 5/4mil
Thickness:1.5mm
Min. hole diameter: 0.25mm
Special process: Blind Vias

Advantages Of 12 Layer PCB

Own lamination process to convenient production for Multilayer PCB and shorten the lead time.
Jiangxi facility is environmental-friendly approved by the government .
Famous raw materials brand, Kingboard, Shengyi, ITEQ, Taiyo, Guangxin.
Highly automated production line with AIO Optical Scanning, Electroplating Automatic Line, High-speed flying probe test machines and inkjet printer.
Engineers with more than 15 years of experience
Customers located in more than 20 countries, the common choice of 500 high-end companies.
High staff stability, low mobility.
UL/ISO9001/SGS/IATF16949/ROHS/ISO1400 certificated.
Sales office in Shenzhen and own 12,000sqm factory in Jiangxi.
Establish an e-commerce system to reduce transaction costs and increase market response speed.

Huihe Circuits is a professional printed circuit board supplier and 12 layer pcb manufacturer, we provide 10 layer pcb, pcb board and etc. For more information, please feel free to contact us!
